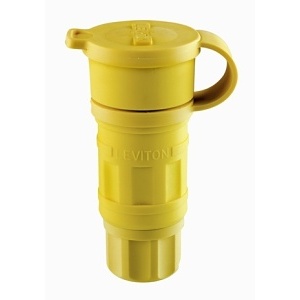

Leviton 27W76 Pin and Sleeve Plug, 5-Wire, 30A, 3-Phase, 347/600V, Watertight

27W76 | LV-27W76

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

20A, 480V 3-Phase, NEMA L16-20R, 3P, 4W, Locking Connector, Industrial Grade, Grounding, Wetguard; Yellow.

Main Features

Battle the Elements; Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
Watertight; When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
Unique Design; Exclusive 'tongue and groove' design provides superior ingress protection from water, dirt and debris
High Performance; Heavy-duty, one-piece contacts for maximum conductivity electrical performance

General Information

Name: Leviton 27W76 Pin and Sleeve Plug, 5-Wire, 30A, 3-Phase, 347/600V, Watertight

Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Connectors

UPC Code:

Country of Origin: . Country of origin is subject to change.

Specifications

: ADI Part Number LV-27W76 Brand Name Leviton Manufacturer Part Number 27W76 Product Name Wetguard Watertight Locking Connector Product Type Connector

: Color Yellow

: Voltage Rating 480V AC

: Environmental Certification UL

Documents and Resources

Download All Documents

Product Data Sheet

Manufacturer Brochure
