Product Overview

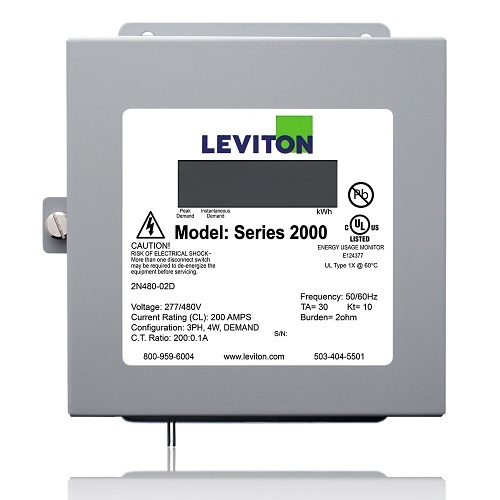

Series 2000 Submeter, Three Element Demand Meter, 277/480V, 3PH, 4W, Line-to-Line, 200:0.1A ratio, Max 200A, Indoor Surface Mount Enclosure. SUBMETER ONLY. Requires (3) 200A Current Transformers, Electric Meter, Title 24 compliant, ASHRAE 90.1 compliant. The Leviton VerifEye Series 2000 line of revenue-grade submeters meets all measurement and verification-based opportunities - including load management and LEED rating achievement. Designed to provide a simple and effective process for accurately capturing measurements of power consumption, Series 2000 submeters are easy to specify and install for new construction and retrofits.
Main Features
- Measures kWh and demand (optional)
- Conform to all applicable standards of ANSI C12.1
- Equipped with an Isolated Pulse Output channel
- Utilizes revenue grade 0.3% accuracy class 0.1A secondary solid core CTs that conform to all applicable ANSI requirements or 1.0% accuracy split-core CTs
- Up to three sets of CTs per phase can be paralleled per meter without the need for a meter multiplier
- Enclosures include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
- Interfaces with numerous communication systems; Hardwired Automatic Meter Reading (AMR) or wireless AMR
- Large LCD display shows kWh and instantaneous and peak demand (optionally) with manual keyed reset
- Load Indicator LED verifies meter functionality
- Reverse Phase Indicator LED illuminates if the meter is improperly installed
General Information
Name: Leviton 2N480-2D S2K 3-Pole 4-Wire 2000.1A Inductive Switch
Category: Leviton, Smart Home, Smart Dimmers & Light Switches
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-2N4802D Application/Usage AMR integration, Energy conservation and cost reduction, Green building initiatives and government mandates, Load profiling and benchmarking, Measurement and verification, Tenant cost allocation, Usage aggregation Brand Name Leviton Country of Origin US Manufacturer Part Number 2N480-2D Product Line Series 2000 Product Name Submeter, Indoor, 277/480V, 3 Phase 4 Wire, Max 200A, Three Element, Demand, Electric Meter Product Series Series 2000 Product Type Electric Meter
Input Voltage 277-480V AC
Limited Warranty 5-Year
Environmental Certification NEMA, UL
