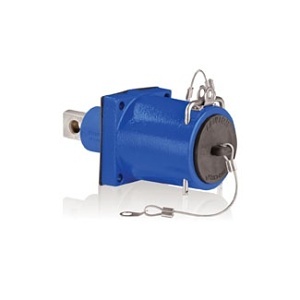

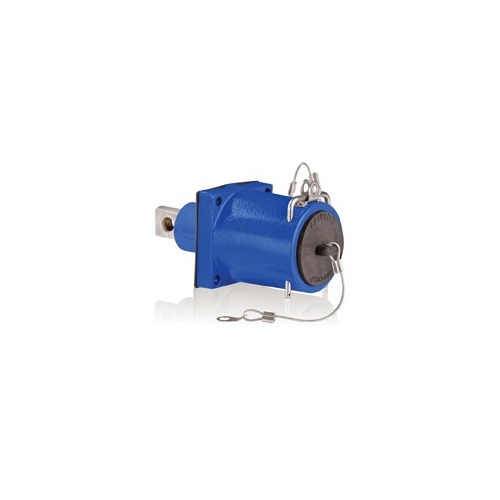

Leviton 49FR1-CB 49 Series Single Pole Female Receptacle 313-777 MCM Single Hole Bus Bar, Blue
49FR1-CB
|LV-49FR1CB
Shop all Leviton
Leviton 49FR1-CB 49 Series Single Pole Female Receptacle 313-777 MCM Single Hole Bus Bar, Blue
49FR1-CB | LV-49FR1CB
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Rhino-Hide 49 Series Single Pole Female Receptacle (Color Coded Metal Housing, Contact, & Dust Cap), Single Hole Bus Bar, Industrial Grade, 313MCM-777MCM Cable, 1000 Volt, 1135 Amp Max - BLUE
Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
TPV cap prevents contamination when receptacle is not in use
Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels
Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
TPV cap prevents contamination when receptacle is not in use
Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels
Main Features
- High amperage 49 Series female receptacle
- Color-coded metal housing for easy identification
- Supports 313MCM-777MCM cable, 1000V, 1135A max
- Designed for extreme, demanding conditions
- Ideal for SCRs, generator stations, oil/gas rigs
- Powder-coated cast aluminum housing
- TPV cap prevents contamination
- Captive stainless steel clevis bracket
- 45° access for smaller panels
General Information
Name: Leviton 49FR1-CB 49 Series Single Pole Female Receptacle 313-777 MCM Single Hole Bus Bar, Blue
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Plugs
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-49FR1CB Brand Name Leviton Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 49FR1-CB Product Line Rhino-Hide Product Name Female Receptacle, 313-777 MCM, Single Hole Bus Bar Product Type Power Socket
Material Powder-Coated Cast Aluminum
Color Blue
Current Rating 1.1 kA Voltage Rating 1kV AC
