Leviton 49FR1-XY Rhino-Hide 49 Series Single Pole Female Receptacle, 313-777 MCM, Single Hole Bus Bar
49FR1-XY
|LV-49FR1XY
Shop all Leviton
Leviton 49FR1-XY Rhino-Hide 49 Series Single Pole Female Receptacle, 313-777 MCM, Single Hole Bus Bar
49FR1-XY | LV-49FR1XY
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

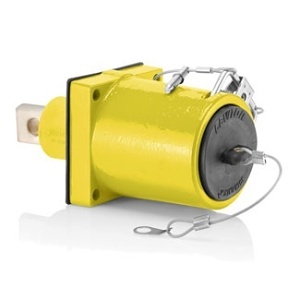

Rhino-Hide 49 Series Single Pole Female 45 Degree Receptacle (Color Coded Metal Housing, Contact, Captive Clevis Pin & Dust Cap), Single Hole Bus Bar, Industrial Grade, 313MCM-777MCM Cable, 1000 Volt, 1135 Amp Max - YELLOW
Rhino-Hide receptacles include a bus bar with male or female contact inserted into a Santoprene TPV insulator which is protected by a powder coated metal housing and TPV dust cap. A clevis pin (included) and padlock shackle secure the bus bar. Bus bars are available with single or double holes and each is compatible with the full cable range, 313 MCM to 777 MCM. Choose a male bus bar for the power side of the circuit or a female bus bar for the motor load side of the circuit. "X" Version receptacle housings feature a 45-Degree angle stainless steel clevis pin that permits ganging of multiple receptacles in a very close proximity to each other (as close as 1/4-Inch for installation on smaller panels).
Rhino-Hide receptacles include a bus bar with male or female contact inserted into a Santoprene TPV insulator which is protected by a powder coated metal housing and TPV dust cap. A clevis pin (included) and padlock shackle secure the bus bar. Bus bars are available with single or double holes and each is compatible with the full cable range, 313 MCM to 777 MCM. Choose a male bus bar for the power side of the circuit or a female bus bar for the motor load side of the circuit. "X" Version receptacle housings feature a 45-Degree angle stainless steel clevis pin that permits ganging of multiple receptacles in a very close proximity to each other (as close as 1/4-Inch for installation on smaller panels).
Main Features
- Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
- TPV cap prevents contamination when receptacle is not in use
- Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45 for easier access in smaller panels
General Information
Name: Leviton 49FR1-XY Rhino-Hide 49 Series Single Pole Female Receptacle, 313-777 MCM, Single Hole Bus Bar
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Connectors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-49FR1XY Brand Name Leviton Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 49FR1-XY Product Line Rhino-Hide Product Name Female Receptacle, 313-777 MCM, Single Hole Bus Bar Product Type Power Socket
Material Powder-Coated Cast Aluminum
Color Yellow
Package Contents - Female Receptacle, 313-777 MCM, Single Hole Bus Bar
- Clevis Pin
