Leviton 49FR2-CP 49 Series Female Receptacle, 313-777 MCM, Double Hole Bus Bar
49FR2-CP
|LV-49FR2CP
Shop all Leviton
Leviton 49FR2-CP 49 Series Female Receptacle, 313-777 MCM, Double Hole Bus Bar
49FR2-CP | LV-49FR2CP
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

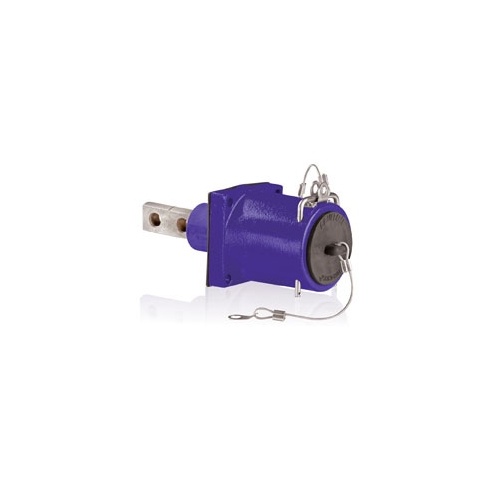

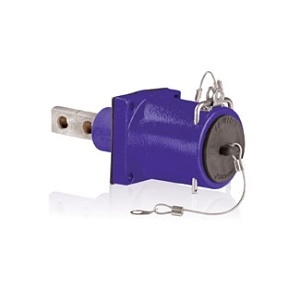

Rhino-Hide 49 Series Single Pole Female Receptacle (Color Coded Metal Housing, Contact, & Dust Cap), Double Hole Bus Bar, Industrial Grade, 313MCM-777MCM Cable, 1000 Volt, 1135 Amp Max - PURPLE
Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
TPV cap prevents contamination when receptacle is not in use
Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels
Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
TPV cap prevents contamination when receptacle is not in use
Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels
Main Features
- Rhino-Hide 49 Series Female Receptacle
- Color-coded metal housing for easy identification
- Supports 313MCM-777MCM cable
- Industrial grade, 1000 Volt, 1135 Amp Max
- Designed for extreme, demanding conditions
- Compatible with SCRs and generator stations
- Cast aluminum powder-coated housing
- TPV cap prevents contamination
- Captive stainless steel clevis bracket
General Information
Name: Leviton 49FR2-CP 49 Series Female Receptacle, 313-777 MCM, Double Hole Bus Bar
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-49FR2CP Brand Name Leviton Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 49FR2CP Product Line Rhino-Hide Product Name Female Receptacle, 313-777 MCM, Double Hole Bus Bar Product Type Power Socket
Material Powder-Coated Cast Aluminum
Color Purple
Current Rating 1.1 kA Voltage Rating 1kV AC
