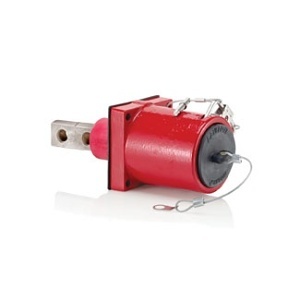

Leviton 49FR2-XR 49 Series Female Double Hole Bus Bar Receptacle 1000V, 1135A, Red
49FR2-XR | LV-49FR2XR
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Rhino-Hide 49 Series Double Hole Female 45 Degree Receptacle (Color Coded Metal Housing, Contact, Captive Clevis Pin & Dust Cap), Double Hole Bus Bar, Industrial Grade, 313MCM-777MCM Cable, 1000 Volt, 1135 Amp Max - RED
Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
TPV cap prevents contamination when receptacle is not in use
Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels
Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
TPV cap prevents contamination when receptacle is not in use
Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels
Main Features
- High amperage 49 Series for extreme conditions
- Color-coded metal housing for easy identification
- 45° design for easier access in small panels
- TPV cap prevents contamination when not in use
- Captive clevis pin with industry standard lockout
- Supports 313MCM-777MCM cable, 1000 Volt, 1135 Amp Max
- Ideal for SCRs, generator stations, oil/gas rigs
General Information
Name: Leviton 49FR2-XR 49 Series Female Double Hole Bus Bar Receptacle 1000V, 1135A, Red
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Plugs
UPC Code:
Country of Origin: .Country of origin is subject to change.
Specifications
ADI Part Number LV-49FR2XR Brand Name Leviton Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 49FR2-XR Product Line Rhino-Hide Product Name Female Receptacle, 313-777 MCM, Double Hole Bus Bar Product Series 49 Product Type Power Socket
Material Powder-Coated Cast Aluminum
Color Red
Current Rating 1.1 kA Voltage Rating 1kV AC
