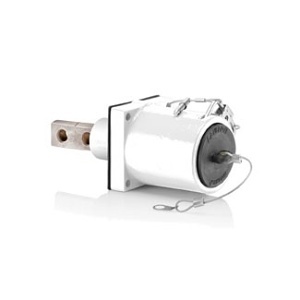

Leviton 49FR2-XW 49 Series Female Double Hole Bus Bar Receptacle 1000V, 1135A, White
49FR2-XW
|LV-49FR2XW
Shop All Leviton
Leviton 49FR2-XW 49 Series Female Double Hole Bus Bar Receptacle 1000V, 1135A, White
49FR2-XW | LV-49FR2XW
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Rhino-Hide 49 Series Double Hole Female 45 Degree Receptacle (Color Coded Metal Housing, Contact, Captive Clevis Pin and Dust Cap), Double Hole Bus Bar, Industrial Grade, 313MCM-777MCM Cable, 1000 Volt, 1135 Amp Max - WHITE Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs. Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections TPV cap prevents contamination when receptacle is not in use Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels.
Main Features
- Rhino-Hide 49 Series for extreme conditions
- Color-coded metal housing for easy identification
- 45° design for easier access in small panels
- Captive clevis pin and dust cap included
- Supports 313MCM-777MCM cable, 1000V, 1135A max
- Ideal for SCRs, generator stations, oil/gas rigs
- Industrial grade for high amperage devices
- TPV cap prevents contamination when not in use
General Information
Name: Leviton 49FR2-XW 49 Series Female Double Hole Bus Bar Receptacle 1000V, 1135A, White
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Connectors
UPC Code:
Country of Origin: .Country of origin is subject to change.
Specifications
ADI Part Number LV-49FR2XW Brand Name Leviton Manufacturer Part Number 49FR2-XW Product Name Female Receptacle, 313-777 MCM, Double Hole Bus Bar Product Series 49 Product Type Receptacle
Color White
