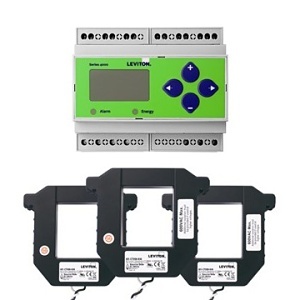

Leviton 4KUMR-8M Indoor Series 4000 Submeter, DIN Rail Mount, Universal Voltage, 3 Phase 3 Wire/4 Wire, Max 800A, (3) Split Core Current Transformers, Electric Meter Kit
4KUMR-8M
|LV-4KUMR8M
Shop All Leviton
Leviton 4KUMR-8M Indoor Series 4000 Submeter, DIN Rail Mount, Universal Voltage, 3 Phase 3 Wire/4 Wire, Max 800A, (3) Split Core Current Transformers, Electric Meter Kit
4KUMR-8M | LV-4KUMR8M
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Indoor Series 4000 Submeter, Universal Voltage 3-phase 3W/4W Modbus Submeter Kit (CTs Included). Din Rail Mount - NO ENCLOSURE. 3 800A Split Core Current Transformers (CT) The VerifEye Series 4000 Industrial ModBus Submeter Kits are revenue-grade (ANSI C12.20 Class 0.2%) kWh electrical meters. The device combines exceptional performance and easy installation for a cost-effective energy monitoring solution. The VerifEye Series 4000 Industrial ModBus Meter Kits are available in standalone DIN Rail Mount or NEMA 4X Enclosure, 3-phase, advanced communication meter kits with split core or flexible rope-style Rogowski Current Transformers (CTs) for compact or irregular shaped conductors. Combinations of serial communication, pulse output and phase alarms are provided to suit a wide variety of applications.
Main Features
- DIN Rail mount for easy installation
- 800A Split Core CTs
- ANSI 12.20 0.2% Accuracy, IEC 62053-22 Class 0.5S
- Real energy output and phase loss alarm output
- 90-600VA versatility with fewer models to stock
- One device serves multiple locations
- User-enabled password protection to protect meter from tampering
- Bright, backlit LCD for installation in dark areas and viewing real time data
- System integration via ModBus RTU - RS-485 2-wire with shield
- CSI Approved for California Solar Initiative
General Information
Name: Leviton 4KUMR-8M Indoor Series 4000 Submeter, DIN Rail Mount, Universal Voltage, 3 Phase 3 Wire/4 Wire, Max 800A, (3) Split Core Current Transformers, Electric Meter Kit
Category: Leviton, Tools & Hardware, Electric Power Testing Tools, Multimeters
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-4KUMR8M Brand Name Leviton Manufacturer Part Number 4KUMR-8M Product Name Submeter, DIN rail mount, UniversalVage, 3 Phase 3 Wire/4 Wire, Max 800A, (3) Split Core Current Transformers, Electric Meter Kit
