Product Overview

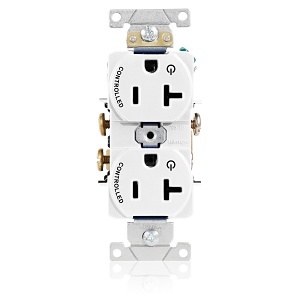

Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Two Outlets Marked "Controlled", Smooth Face, 20A, 125V, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White. Leviton offers custom imprinting solutions to meet the 2014 National Electrical Code requirements for identifying receptacles that will be automatically de-energized as part of an overall plug load control program. All 15A and 20A, 125V receptacles that are automatically controlled will be marked with a specific symbol.
Main Features
- Heavy-duty industrial grade
- Duplex receptacle with two outlets
- Marked 'Controlled' for safety
- Smooth face design
- 20A, 125V capacity
- Back or side wire installation
- NEMA 5-20R compliant
- Self-grounding feature
- Custom imprinting available
- Meets 2014 National Electrical Code
General Information
Name: Leviton 5362-S2W 520R Controlled Standard Receptacle, White
Category: Leviton, Smart Home, Smart Dimmers & Light Switches
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-5362S2W Brand Name Leviton Manufacturer Part Number 5362-S2W Product Name Duplex Receptacle Outlet, Self-Grounding - White Product Type Duplex Receptacle
Material Nylon Receptacle Detail 1x2P+3W Receptacle Type NEMA 5-20R
Color White
Current Rating 20 A Voltage Rating 125V AC
Limited Warranty 10-Year
Certifications & Standards ANSI: C-73, CSA C22.2 No. 42, FedSpec W-C 596, UL 498 Environmental Certification CSA, NOM-ANCE, UL Environmentally Friendly Yes
