Product Overview

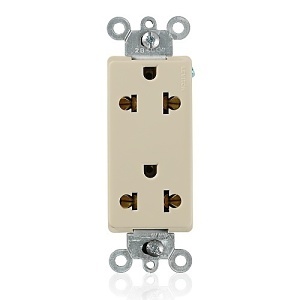

Decora Plus Duplex Receptacle Outlet, Straight Blade and Europlug, Commercial Specification Grade, Smooth Face, 15 Amp, 125/250 Volt, Back or Side Wire, NEMA 5-15R_CEE 7/16 , 2-Pole, 3-Wire - Ivory
Leviton has combined the two most popular configurations, a NEMA 5-15 and CEE 7/16 1-15 plug. This two-pin plug is probably the single most widely used international plug, popularly known as the Europlug. The plug is unearthed and has two round, 4 mm pins, which usually converge slightly. It can be inserted into any socket that accepts 4 mm round contacts spaced 19 mm apart. It is described in CEE 7/16 and is also defined in Italian standard CEI 23-5 and Russian standard GOST 7396. The Europlug is used in Class II applications throughout continental Europe (Germany, Austria, Switzerland, Italy, Greece, the Netherlands, Belgium, France, Spain, Portugal, Denmark, Norway, Sweden, Finland, Poland, The Czech Republic, Slovakia, Hungary, Romania, Bulgaria, Lithuania). It is also used in Turkey, the Middle East, and most of Africa and South America (Brazil), as well as the former Soviet republics, and many developing nations. The plug is intended for use with devices that require 2.5 A or less. Because it can be inserted in either direction into the socket, live and neutral are connected at random.
Leviton has combined the two most popular configurations, a NEMA 5-15 and CEE 7/16 1-15 plug. This two-pin plug is probably the single most widely used international plug, popularly known as the Europlug. The plug is unearthed and has two round, 4 mm pins, which usually converge slightly. It can be inserted into any socket that accepts 4 mm round contacts spaced 19 mm apart. It is described in CEE 7/16 and is also defined in Italian standard CEI 23-5 and Russian standard GOST 7396. The Europlug is used in Class II applications throughout continental Europe (Germany, Austria, Switzerland, Italy, Greece, the Netherlands, Belgium, France, Spain, Portugal, Denmark, Norway, Sweden, Finland, Poland, The Czech Republic, Slovakia, Hungary, Romania, Bulgaria, Lithuania). It is also used in Turkey, the Middle East, and most of Africa and South America (Brazil), as well as the former Soviet republics, and many developing nations. The plug is intended for use with devices that require 2.5 A or less. Because it can be inserted in either direction into the socket, live and neutral are connected at random.
Main Features
- 15 Amp, 125/250 Volt capacity
- Compatible with NEMA 5-15 and CEE 7/16 plugs
- Commercial Specification Grade
- Smooth face design for aesthetics
- Back or side wire installation
- 2-Pole, 3-Wire configuration
- Widely used Europlug design
- Suitable for Class II applications
- Versatile international compatibility
- Ivory color for a classic look
General Information
Name: Leviton 5825-I Connectors, 15A 125 250V Europlug, Ivory
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Plugs
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-5825I Brand Name Leviton Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 5825-I Product Line Decora Plus Product Name 15 Amp Decora Plus Duplex Receptacle/Outlet, Commercial Grade Product Type Power Socket
Material Thermoplastic Nylon Receptacle Type NEMA 5-15R
Color Ivory
Current Rating 15 A Voltage Rating 125V AC|250V AC
Limited Warranty 10-Year
Country of Origin MX
