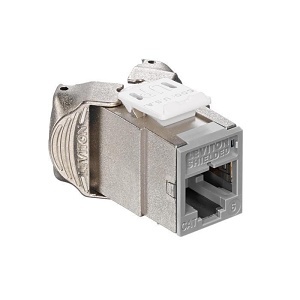

Leviton 61SJK-RG6 ATLAS-X1 CAT6 Shielded QUICKPORT Jack, Gray
61SJK-RG6 | LV-61SJKRG6
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The ATLAS-X1 Category 6 Component-Rated Shielded QUICKPORT Jack supports 1000BASE-T networks. The shielded jack provides superior alien crosstalk (AXT) suppression and protects critical data from potential EMI/RFI (electromagnetic interference/radio frequency interference). The jack is part of a complete ATLAS-X1 Cat 6 shielded system ideal for government, healthcare, manufacturing, transportation, gaming, and other environments where EMI/RFI and/or security may be a concern.
Specifications
ADI Part Number LV-61SJKRG6 Brand Name Leviton Manufacturer Part Number 61SJK-RG6 Package Length 0.200000000
Color Gray
Features Available in 13 ANSI/TIA-606-C compatible colors, ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications, For Power over Ethernet, RFT maintains contact force between plug and jack, preventing arcing from intermittent disconnects, Independently tested and guaranteed to exceed all component, permanent link, and channel margins, Jack with internal shutter protects against dust and debris, Patented Retention Force Technology (RFT) protects against tine damage and increases system longevity, Robust IDCs can withstand 20 re-termination cycles and jack contacts are tested for 750 plug-mating cycles to ensure system longevity, Select jacks available with interchangeable icons (voice, data, A/V, and blank, color coded to match the jack face) for easy identification and tracking of data, voice, or other functions, Shielding provides EMI/RFI protection, signal isolation, and excellent alien crosstalk (AXT) suppression, Short jack design supports a wider range of applications (e.g. shallow boxes, enclosures, bend radius, etc.), Solid metal body dissipates 53% more heat than traditional plastic, minimizing damage from excess heat in PoE applications, Terminates from 26 to 22-gauge solid or stranded conductors for use on various cable types, Tine geometry prevents arcing damage where plug and jack make contact, Unique design supports tool-free termination/re-termination and requires no specialized termination tool, Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously
