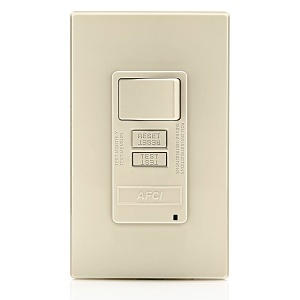

Leviton AFSW1-T AFCI / Switch Combo with LED Indicator Light, 15A, Light Almond
AFSW1-T
|LV-AFSW1T
Shop All Leviton
Leviton AFSW1-T AFCI / Switch Combo with LED Indicator Light, 15A, Light Almond
AFSW1-T | LV-AFSW1T
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
15 Amp Switch, 20 Amp Feed-Through, 125 Volt OBC AFCI with Switch, Monochromatic, back and side wired, nylon wallplate/faceplate included, self-grounding clip included – Light Almond The SmartlockPro Outlet Branch Circuit (OBC) Combination AFCI/Switch offers advanced technology to help protect against electrical fires resulting from arc-faults plus the convenience of a single pole switch to control the lights. This combination is ideal for kitchens, family rooms, bedrooms, dining rooms and hallways. The AFCI Switch may be used for new circuits or modifications to existing circuits where a switch is the first outlet on a branch circuit. Designed to detect a wide range of potentially hazardous arc-faults resulting from damage in branch circuit wiring as well as extensions to branches such as appliances and cord sets, the OBC AFCI responds by interrupting power. This helps reduce the likelihood of the home’s electrical system being an ignition source of a fire. Often unseen, arc-faults can occur anywhere in the home’s electrical system including within walls, at loose electrical connections or within electrical cords accidently damaged by impinging furniture. AFCIs are now required by the National Electrical Code in many areas of the home.
Main Features
- Combination AFCI and single pole switch for new circuits or modifications to existing circuits where a switch is the first outlet in a branch circuit
- Use of TEST and RESET buttons is similar to traditional GFCI receptacles of which consumers have become familiar with. This translates into greater acceptance of the technology and a more user-friendly platform
- Automatically tests the AFCI every time the RESET button is depressed; the AFCI will not reset if the AFCI circuit is not functioning properly
- By blocking reset of the AFCI if protection has been compromised, the SmartlockPro OBC AFCI reduces the possibility of end-users incorrectly assuming that a reset AFCI is providing protection when its functionality has been compromised
- A line-load reversal diagnostic feature is provided which prevents the AFCI from being reset and stops power from being fed to the AFCI receptacle face or through to downstream devices; a green LED indicator on the AFCI’s face also illuminates to alert the installer to a line-load wiring reversal when the device is in the tripped state
- Device design reduces nuisance tripping
- Impact-resistant thermoplastic cover and body
- Superior resistance to electrical surges and over-voltages
- Terminals allow for easy wiring options – back and side wire capable
- Compatible with all Decora devices and wallplates; available in select colors
General Information
Name: Leviton AFSW1-T AFCI / Switch Combo with LED Indicator Light, 15A, Light Almond
Category: Leviton, Data Comm & Networking, Faceplates & Mount Boxes, Faceplates
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-AFSW1T Brand Name Leviton Manufacturer Part Number AFSW1-T Product Name 15A, Self Test,AFCI/Switch Combo with LED Indicator Light Product Type AFCI Switch
Certifications & Standards NEMA WD6, UL/CSA
Color Almond
Input Voltage 125V AC
Limited Warranty 2-Year
