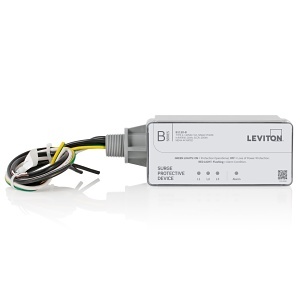

Leviton B1120-B B Series Surge Protective Device, Single Phase, 130kA Per Phase, 120VAC/CA
B1120-B
|LV-B1120B
Shop all Leviton
Leviton B1120-B B Series Surge Protective Device, Single Phase, 130kA Per Phase, 120VAC/CA
B1120-B | LV-B1120B
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
B Series Type 2 Surge Panel, 120 VAC, Single Phase, Max Surge Current Rating of 65kA per Mode/130kA per Phase, 200kA Short Circuit Current Rating (SCCR), 20kA I-nominal (l n ) Rating, NEMA 4X Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-N; 700, L-G; 700, N-G; 700, Maximum Continuous Operating Voltage (MCOV); Plastic Enclosure, LED Status Monitoring, Audible Alarm, UL 1449 Listed, UL 1283 EMI/RFI Filtering, Approximate Lead Length = 18", White Leviton surge protective devices (SPDs) divert damaging voltage transients, or surges, away from electronic equipment Ideal for the branch panel in COMMERCIAL AND INDUSTRIAL APPLICATIONS and the main panel in light commercial applications, the B Series is versatile in its usage Code Compliant – in 2020, Article 230.67 of the National Electrical Code (NEC) updates required all services supplying dwelling units to be provided with a surge protective device (SPD), as an integral part of equipment or located immediately adjacent. The SPD must be a Type 1 or Type 2 SPD . The 2023 code expanded the requirements to dormitory units, guest rooms and guest suites of hotels and motels, and areas of nursing homes and limited-care facilities used exclusively as patient sleeping rooms.
Main Features
- Type 2 Surge Panel, 120 VAC, Single Phase
- Max Surge Current: 65kA per Mode/130kA per Phase
- 200kA Short Circuit Current Rating (SCCR)
- NEMA 4X Rated Enclosure for durability
- Thermally Protected MOVs for safety
- LED Status Monitoring and Audible Alarm
- UL 1449 Listed, UL 1283 EMI/RFI Filtering
- Ideal for commercial and industrial applications
- Complies with 2020 and 2023 NEC updates
General Information
Name: Leviton B1120-B B Series Surge Protective Device, Single Phase, 130kA Per Phase, 120VAC/CA
Category: Leviton, Batteries & Power Supplies, Power Strips & Surge Protectors, Surge Protection Modules
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-B1120B Brand Name Leviton Manufacturer Part Number B1120-B Product Name Type 2 Surge Protective Device, 120 VAC, Single Phase Product Series B Product Type Surge Protection Device
Input Voltage 120V AC
Limited Warranty 5-Year
