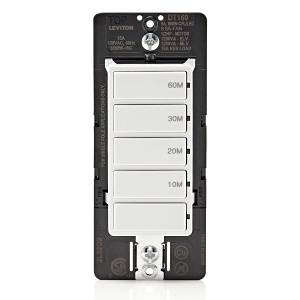

Leviton DT160-1LW 15A Single-Pole Decora Timer 5-Key 10/20/30/60 Minutes, White
DT160-1LW
|LV-DT1601LW
Shop All Leviton
Leviton DT160-1LW 15A Single-Pole Decora Timer 5-Key 10/20/30/60 Minutes, White
DT160-1LW | LV-DT1601LW
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The Decora 60-Minute Countdown Timer Switch has 5-buttons with 10 min, 20 min, 30 min and 60 min preset time options and a manual Off button. Single Pole, 600W LED/CFL, 1800W Incandescent / Halogen, 1200VA Magnetic Low Voltage / Electronic Low Voltage / Fluorescent, 1/2 HP/9.8A fan / motor, 15A resistive. Can be installed with or without a neutral wire, wallplate sold separately.
Main Features
- Replace a standard wall switch with a countdown timer to ensure exhaust fans or lights are not left on unintentionally
- Four preset time option buttons 10-20-30-60 min with separate off button
- Do not use to control lights if there is no other light source in the space
- Shallow design easily fits in the wallbox and lead terminal wires for easier installation without having to bend wires around terminal screws
- Zero Cross turn-on technology to extend the life of the switch
- DIY Friendly with two black wires that can be interchanged between line and load to help prevent miswiring
- Manual override keeps load on for 24 hr
- Override can be disabled by pressing one of the timer option buttons or off button
- Change color with DTKIT faceplates available in white, ivory, light almond, gray, black and brown (sold separately)
- Ideal to use for bathroom exhaust fans, heat lamps, towel warmers, garages, attics, basements and more
General Information
Name: Leviton DT160-1LW 15A Single-Pole Decora Timer 5-Key 10/20/30/60 Minutes, White
Category: Leviton, Smart Home, Smart Dimmers & Light Switches
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-DT1601LW Brand Name Leviton Country of Origin CN Manufacturer Part Number DT160-1LW Product Name Decora In-Wall 60-Minute Countdown Timer Switch, 15A, ? HP/9.8A Fan/Motor, Single Pole Product Type Countdown Timer Switch
Control Type Push Button Controllable Function Fan Control, Motor Control
Certifications & Standards CSA, FCC, IC
Color White Depth 1.34" Width 1.73"
Current Rating 15.00A Input Voltage 120V AC Power Rating 600.00W
Switch Type Timer Switch
Limited Warranty 5-Year
Environmental Certification RoHS
