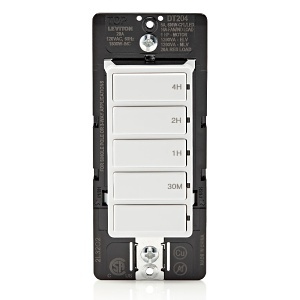

Leviton DT204-1LW 20A Single Pole 3-Way Decorator Timer Key, 30M/1/2/4H, White
DT204-1LW
|LV-DT2041LW
Shop All Leviton
Leviton DT204-1LW 20A Single Pole 3-Way Decorator Timer Key, 30M/1/2/4H, White
DT204-1LW | LV-DT2041LW
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Leviton's 4-Hour Countdown Timer Switch has 5-buttons with 30 min, 1 hr, 2 hr and 4 hr time options and a manual Off button. The larger load capacity can handle larger fixtures and fans. Single pole, multi-way using DD0SR Switch Companion or multi-timer using two DT204 countdown timers. 600W LED/CFL, 1800W Incandescent / Halogen, 1200VA Magnetic Low Voltage / Electronic Low Voltage / Fluorescent, 1 HP/16A fan / motor, 20A resistive / 16A inductive. Requires a neutral wire for installation, wallplate sold separately.
Main Features
- Replace a standard wall switch with a countdown timer to ensure exhaust fans or lights are not left on unintentionally
- Four preset time option buttons 30 min, 1-2-4 hr with separate off button
- Do not use to control lights if there is no other light source in the space
- Shallow design easily fits in the wallbox and lead terminal wires for easier installation without having to bend wires around terminal screws
- Designed with load capacity to handle larger exhaust fans, pumps and fixtures
- Single pole, multi-way using DD0SR Switch Companion or multi-timer using two DT204 countdown timers
- Zero Cross turn-on technology to extend the life of the switch
- Manual override keeps load on for 24 hr. Override can be disabled by pressing one of the timer option buttons or off button
- Change color with DTKIT faceplates available in white, ivory, light almond, gray, black and brown (sold separately)
General Information
Name: Leviton DT204-1LW 20A Single Pole 3-Way Decorator Timer Key, 30M/1/2/4H, White
Category: Leviton, Smart Home, Smart Dimmers & Light Switches
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-DT2041LW Brand Name Leviton Country of Origin CN Manufacturer Part Number DT204-1LW Product Name Decora In-Wall 4-Hour Countdown Timer Switch, 20A, 1 HP/16A Fan/Motor, Single Pole/Multi-Way/Multi-Timer Product Type Countdown Timer Switch
Control Type Push Button Controllable Function Fan Control, Motor Control
Certifications & Standards CSA, FCC, IC
Color White
Input Voltage 120V AC
Switch Type Timer Switch
Limited Warranty 5-Year
Compatibility DD0SR, DT204
