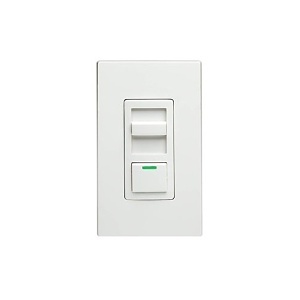

Leviton IPE04-1FZ Illumatech ELV Dimmer, Electric Switches & Dimmers
IPE04-1FZ
|LV-IPE041FZ
Shop all Leviton
Leviton IPE04-1FZ Illumatech ELV Dimmer, Electric Switches & Dimmers
IPE04-1FZ | LV-IPE041FZ
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The Leviton IPE04-1FZ ILLUMATECH ELV DIMMER is designed for precise control of Electronic Low Voltage, LED, CFL, Incandescent, and Halogen loads. It requires a neutral wire for installation and supports single pole or 3-way lighting control when paired with a 3-way switch. This dimmer features fluid slide movement for fine light level adjustment with minimal effort and includes an adjustment switch to reduce flicker at low levels. Additional design elements include a captive wraparound slide bar, an easy-use push button switch with green LED locator light that illuminates when the load is off, and a push button switch functioning as an air gap switch for bulb changing, all within a slide control travel of approximately 20mm.
Main Features
- Designed for control of Electronic Low Voltage, LED, CFL, Incandescent and Halogen loads
- Neutral wire required for installation
- Provides single pole or 3-way lighting control when used with a 3-way switch
- Fluid slide movement allows fine adjustment of light level with minimal effort
- Adjustment switch to modify the minimum light level to help eliminate low end flicker for a smoother dimming experience
- Captive wraparound slide bar remains securely attached
- Easy to use push button switch with green LED locator light
- LED locator light illuminates when load is off (select models)
- Push button switch acts as an air gap switch completely disconnecting power from unit for bulb changing
- Slide controls travel approximately 20mm
General Information
Name: Leviton IPE04-1FZ Illumatech ELV Dimmer, Electric Switches & Dimmers
Category: Leviton, Smart Home, Smart Dimmers & Light Switches
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-IPE041FZ Brand Name Leviton Manufacturer Part Number IPE04-1FZ
