Leviton LDS30-AMB 30/32A Non-Metallic Disconnect Switch with Inform Technology and Auxiliary Contact
LDS30-AMB
|LV-LDS30AMB
Shop all Leviton
Leviton LDS30-AMB 30/32A Non-Metallic Disconnect Switch with Inform Technology and Auxiliary Contact
LDS30-AMB | LV-LDS30AMB
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
30/32A 600VAC Non-Fused Non-Metallic Disconnect Switch with Local and Remote Monitoring Inform Technolog. Remote Monitoring communicated via Modbus RTU easily integrates into existing automation system. IP66/IP67/IP68/IP69K Rated, NEMA Type 3R, 4X, 6, 6P, 12, 13 Watertight Enclosure, NSF Certifie.Includes Factory Installed Auxiliary Contact (AUXNO), If using a variable frequency drive (VFD), it must be installed between the disconnect switch and the moto.
Main Features
- Sensors are embedded into Leviton devices to monitor device healt. Data from sensors can be viewed locally or remotely

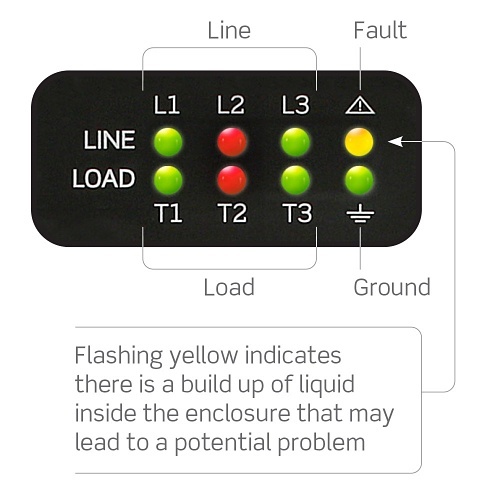

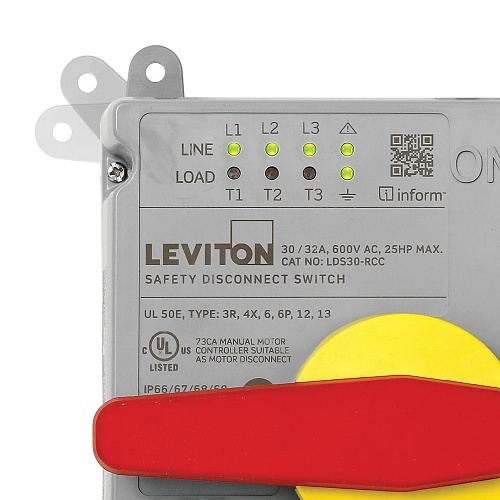

- Local monitoring - Green LEDs on the cover provide a visual indication that the device is operating under normal conditions, flash red if there is a failure, or flash yellow if there is a buildup of liquid inside of the Enclosure that may lead to a potential failure
- Remote monitoring via Modbus RTU - includes data like liquid accumulation, Enclosure temperature and humidity, line- and load-side voltage values, ground continuity, and mor. Access this data 24/7 in your existing automation systems, allowing you to identify any abnormal operating conditions
- High visibility LEDs provide visual confirmation of power being delivered to or removed from connected equipment (minimum 10 year LED lifespan)
- Remote monitoring details voltage level readings for troubleshooting without exposing workers to live parts
- Equipment ground monitoring reduces shock hazard by validating the integrity of the ground connection
- Real-time notifications through remote monitoring allow for rapid response to power-related problems, reducing the duration of downtime events
- Remote view provides visibility of operating status from anywhere - both on and off site
- Detects if liquid begins to accumulate in side Enclosure and sends alert before it causes a failure
General Information
Name: Leviton LDS30-AMB 30/32A Non-Metallic Disconnect Switch with Inform Technology and Auxiliary Contact
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Connectors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-LDS30AMB Brand Name Leviton Manufacturer Part Number LDS30-AMB
Current Rating 30, 32A Input Voltage 600V AC
Limited Warranty 3-Year
Certifications & Standards cULus
