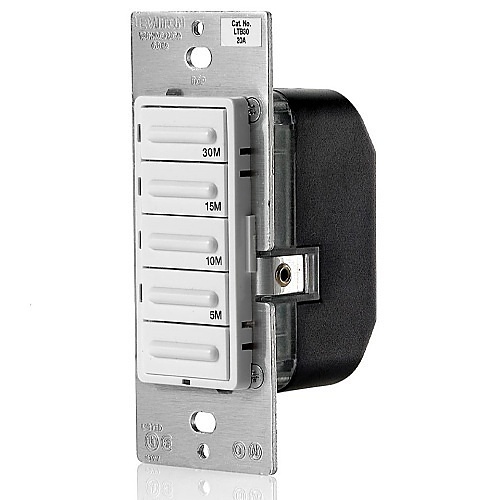

Image of LV-LTB301LZ
Shop all Leviton

Leviton LTB30-1LZ Decora Countdown Timer Switch

LTB30-1LZ|LV-LTB301LZ
Shop all Leviton

Leviton LTB30-1LZ Decora Countdown Timer Switch

LTB30-1LZ|LV-LTB301LZ
Key Features
  • Easy operation with four preset buttons and one"OFF" button
  • 1800 W Incandescent, 600W CFL, 5A LED, 20A Resistive/Inductive, 1 Horsepower at 120 volts
  • Simple press and hold override function
Key Features
  • Easy operation with four preset buttons and one"OFF" button
  • 1800 W Incandescent, 600W CFL, 5A LED, 20A Resistive/Inductive, 1 Horsepower at 120 volts
  • Simple press and hold override function

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • Easy operation with four preset buttons and one"OFF" button
  • 1800 W Incandescent, 600W CFL, 5A LED, 20A Resistive/Inductive, 1 Horsepower at 120 volts
  • Simple press and hold override function
Leviton

Leviton LTB30-1LZ Decora Countdown Timer Switch

LTB30-1LZ | LV-LTB301LZ

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The LTB30-1LZ, Leviton Decora Timer Switch offers advanced features, superior accuracy and contemporary aesthetics. It provides convenient timed control of lighting and motor loads in homes, offices, schools, libraries and other small commercial applications. It is ideal in automating control of heat lamps, hot tubs, attic and exhaust fans. This timer allows users to simply press and hold the top button to initiate override or press and hold two buttons to convert the 30-minute timer into other available time intervals. It has soothing green LED locator lights and offers three colors in one box, plus single pole or 3-way capability (with VP0SR).

Main Features

  • Easy operation with four preset buttons and one"OFF" button
  • 1800 W Incandescent, 600W CFL, 5A LED, 20A Resistive/Inductive, 1 Horsepower at 120 volts
  • Simple press and hold override function
  • Flexibility to convert the 30-minute timer to other available timer intervals
  • Single pole and 3-way with a Vizia + Switch Remote (VP0SR)
  • Three colors in one box: White, Ivory and Light Almond
  • Soothing green LEDs
  • Neutral wire required for installation

General Information

Name: Leviton LTB30-1LZ Decora Countdown Timer Switch
Category: Leviton, Smart Home, Smart Dimmers & Light Switches
UPC Code: 078477459225
Country of Origin: China. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
Installation Instructions
