Leviton MZD30-101 IRC Dimmer 120V/230V/240V/277VAC 50/60Hz Input
MZD30-101|LV-MZD30101
Leviton MZD30-101 IRC Dimmer 120V/230V/240V/277VAC 50/60Hz Input
MZD30-101|LV-MZD30101
Key Features
- Stand-alone simplified daylight harvesting with full range dimming
- Demand response capabilities
- 3-Zone control for LED lighting
Key Features
- Stand-alone simplified daylight harvesting with full range dimming
- Demand response capabilities
- 3-Zone control for LED lighting
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Stand-alone simplified daylight harvesting with full range dimming
- Demand response capabilities
- 3-Zone control for LED lighting
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

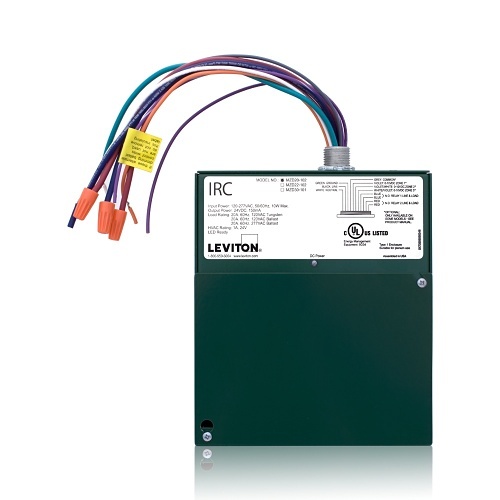

IRC Dimming Version, 3-zone, 1-relay, 120V/277V AC, Title 24 compliant, ASHRAE 90.1 compliant. The Leviton Integrated Room Control (IRC) combines single room occupancy sensing, daylight harvesting, 0-10V dimming, Partial ON, Partial OFF and demand response capabilities into a single, easily installed package. IRC Features several methods of Ladderless Commissioning for install-and-forget convenience, including the AutoCal feature which automatically sets the maximum light output levels and calculates light loss factor for accurate lumen maintenance. The IRC ships as either custom kits or a complete kit with a factory configured occupancy sensor, photocell, and 4-button switch. The 4-button switch provides ON, raise, lower, and OFF functionality. The performance, features, and capabilities of the IRC product provide a simple and cost-effective stand-alone energy management solution to maximize energy efficiency and meet energy code mandates for virtually any commercial room control application.
Main Features
- Stand-alone simplified daylight harvesting with full range dimming
- Demand response capabilities
- 3-Zone control for LED lighting
- 4-Button switch available with ON, Bright, Dim and ON / OFF buttons with optional engraving 2-entry stations for individual manual zone control included with 2-zone, 2-relay kit (RCD20-102)
- CA Title 24 2013 Stairwell Application Control
- Provides plug load control when paired with OPP20 Super Duty Power Pack
- Cost-effective energy code compliance
- Ladderless Commissioning provides install-and-forget convenience
- Convenient occupancy sensor and photocell integration
- Autocal automatic photocell target level calibration
General Information
Name: Leviton MZD30-101 IRC Dimmer 120V/230V/240V/277VAC 50/60Hz Input
Category: Leviton, Smart Home, Smart Dimmers & Light Switches
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number LV-MZD30101 Brand Name Leviton Manufacturer Part Number MZD30-101 Product Line IRC Product Name IRC Dimming, 3 zone, 1 relay, 120V or 277VAC Product Type Dimming Kit
-
Environmentally Friendly No
