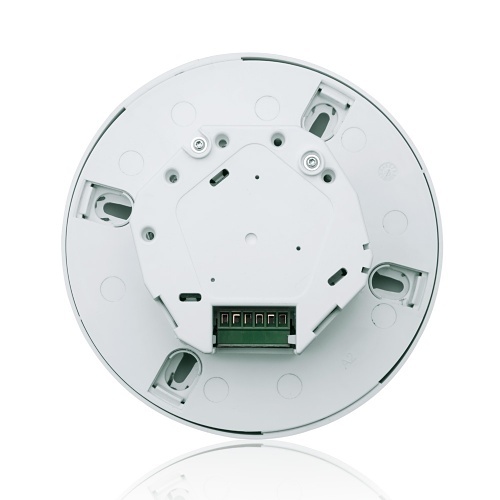

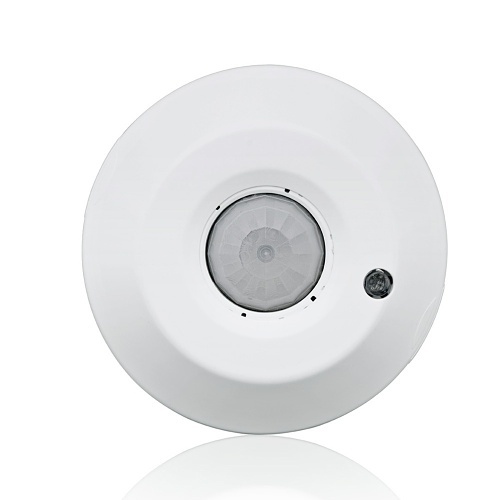

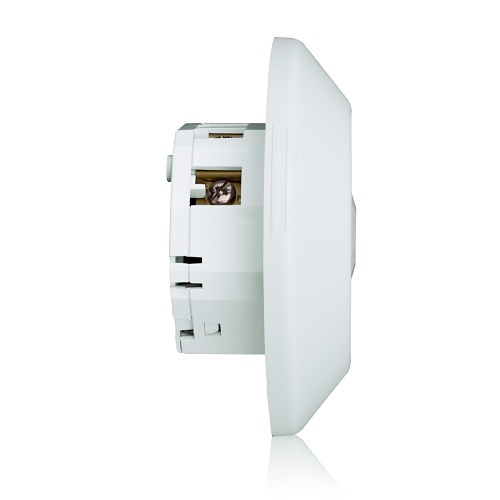

Leviton O4C15-IDW PIR Ceiling Mount 2-Relay Sensor, 120V AC, 1500', White
O4C15-IDW | LV-O4C15IDW
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Vacancy Sensor, Provolt lighting control, 2-pole, Line Voltage, 8-12' ceiling mount, Passive Infrared, Daylighting, Auto-Calibration, 1500sq. ft., 120-277V AC/CA 50/60 Hz. UL/CE, RoHS and CEC Title 20/24 compliant. The Leviton Provolt Dual Relay Vacancy Sensors combine line voltage vacancy sensors into a self-contained unit. The integrated design alleviates the need for separate power pack and vacancy sensor wiring making it a low-cost, efficient energy solution for new construction and retrofits. Vacancy timers continually analyze and adjust to changing conditions using the latest microprocessor-based technology to optimize performance.
Main Features
- Auto-Adapting; Time delay and sensitivity are continually adjusted to occupancy pattern of use
- Vacancy Sensing Time Outs (Delayed OFF Timer, exclusive walk-through feature, False Detection Timer; (M/T) PIR scans for movement and shuts lights off after 31 min of vacancy preventing false triggers from HVAC systems (U/S), Time delay and saved settings are protected during power outages and will return to the last known state
- Output short circuit protection
- Industry-exclusive self-configuring local manual switch input; Momentary or maintained switches are supported
- Adjustable Time Delay; 30s, 5 min, 10 min, 20 min, 30 min
- Test Mode for simplified commissioning
- Manual Switch and Emergency Override are Class 1 or Class 2 circuits
- Industry-exclusive "fail-safe" circuitry; In the event of product failure, Return-to-Closed feature causes the relay to default ON which eliminates life safety concerns
- Industry-exclusive H.I.S. (High Inrush Stability) technology designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service
- Robust and reliable mechanically held 10A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays
General Information
Name: Leviton O4C15-IDW PIR Ceiling Mount 2-Relay Sensor, 120V AC, 1500', White
Category: Leviton, Intrusion, Motion & Perimeter Sensors, PIR Motion Sensors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-O4C15IDW Brand Name Leviton Manufacturer Part Number O4C15-IDW Product Line Provolt Product Name Vacancy Sensor, Line Voltage, Dual Relay, PIR, Ceiling Mount, 1500SF, 120-277V, Provolt?, Vacancy Sensor, Line Voltage, Dual Relay, PIR, Ceiling Mount, 1500SF, 120-277V, Provolt? Product Type Vacancy Sensor
Application/Usage Code Compliance, Manual ON/Auto OFF Maximum Motion Sensing Distance 1500' Sensor Type Passive Infrared
Operating Temperature (T-T) 32-104°F
Color White Depth 2.39" Width 4.8"
Input Voltage 120V AC, 230V AC, 277V AC
Mount Type Ceiling Mount
Limited Warranty 5-Year
Environmental Certification CE compliant, cUL Listed, NOM certified, NY LLC48 compliant, Rohs Compliant, UL 773A (Occupancy Standard), UL 924 (Emergency Equipment) Environmentally Friendly Yes
