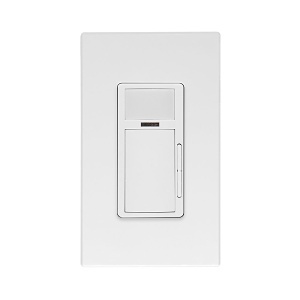

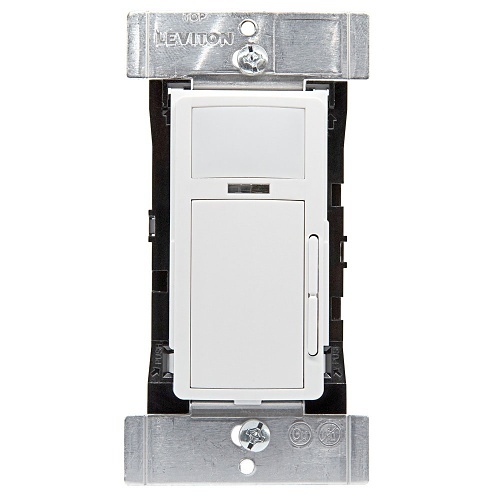

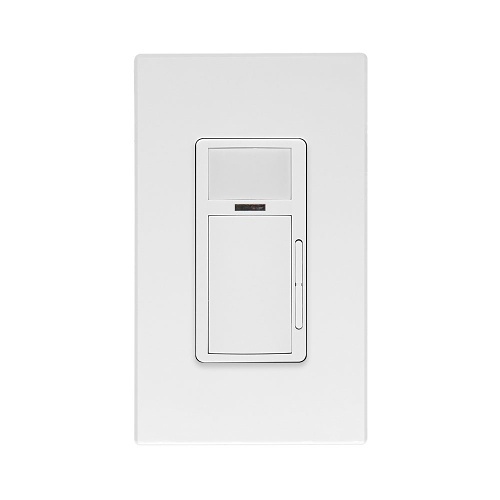

Image of LV-ODD10IDW
Shop all Leviton

Leviton ODD10-IDW Smart Wallbox Bluetooth Passive Infrared, 10A, 0-10V, 120-277V

ODD10-IDW|LV-ODD10IDW
Shop all Leviton

Leviton ODD10-IDW Smart Wallbox Bluetooth Passive Infrared, 10A, 0-10V, 120-277V

ODD10-IDW|LV-ODD10IDW
Key Features
  • Can be used to comply with IECC, ASHRAE 90.1, and 2019 Title 24, Part 6 occupancy / vacancy sensing and dimming requirements
  • Fits in a standard wallbox and gangable with other units
  • ODD24-IDW Is designed for use with a power pack (OPP20 or OSA20) or other Leviton low voltage (24V) source
Key Features
  • Can be used to comply with IECC, ASHRAE 90.1, and 2019 Title 24, Part 6 occupancy / vacancy sensing and dimming requirements
  • Fits in a standard wallbox and gangable with other units
  • ODD24-IDW Is designed for use with a power pack (OPP20 or OSA20) or other Leviton low voltage (24V) source

Sign In for Dealer Pricing

Become an ADI Customer
ADI Pro
Key Features
  • Can be used to comply with IECC, ASHRAE 90.1, and 2019 Title 24, Part 6 occupancy / vacancy sensing and dimming requirements
  • Fits in a standard wallbox and gangable with other units
  • ODD24-IDW Is designed for use with a power pack (OPP20 or OSA20) or other Leviton low voltage (24V) source
Leviton

Leviton ODD10-IDW Smart Wallbox Bluetooth Passive Infrared, 10A, 0-10V, 120-277V

ODD10-IDW | LV-ODD10IDW

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Smart Sensor, PIR, Antimicrobial, Wallbox, 0-10V Dimming, App configurable; Auto-ON / Auto-OFF or Manual-ON / Auto-OFF, neutral wire required, 120/208/220/230/240/277V AC, 50/60 Hz, Commercial Grade, White. Wall plate sold separately. The Leviton Dimming Smart Sensor is designed for use with 0-10V ballasts. Lighting levels can be adjusted using the dimming bar next to the switch. The ODD10-IDx uses Passive Infrared (PIR) detection technology to monitor a room for occupancy using a segmented, tamper-resistant lens. When a person passes in or out of a sensor zone, the sensor detects motion and switches the lights ON. The lights will remain ON as long as an occupant moves through the sensor zones and after the timeout expires. The ODD10-IDx features a vacancy mode for manual-on / Auto-OFF operation, ideal for installations where manual-ON switching is required for energy code applications. Configuration of the ODD10-IDx is made using the Leviton Smart Sensor App on a smartphone or other Bluetooth-enabled Android or iOS device. Simple configuration can also be applied using pushbutton setup for several common pre-configured options. The ODD10-IDx integrates a photocell for daylighting hold-OFF which can be programmed using the Leviton Smart Sensor App. Ideal for non-residential and commercial spaces up to 1,100 SF including offices, meeting rooms, and lobbies.

Main Features

  • Can be used to comply with IECC, ASHRAE 90.1, and 2019 Title 24, Part 6 occupancy / vacancy sensing and dimming requirements
  • Fits in a standard wallbox and gangable with other units
  • ODD24-IDW Is designed for use with a power pack (OPP20 or OSA20) or other Leviton low voltage (24V) source
  • 180° Field-of-view provides approximately 1,100sq. ft. of coverage
  • Maximum sensing distance in front of the sensor is 30-40' and 15-20' on either side
  • Advanced configuration can be performed using the Leviton Smart Sensor App on any Bluetooth enabled Android or iOS device; Set operating mode to Auto-ON / Auto-OFF or Manual-ON / Auto-OFF
  • Adjust the sensitivity of the sensor to increase or decrease coverage area; Adjust timeouts, Activate the nightlight and select nightlight colors, Add daylighting hold-off and select target daylighting hold-off levels, Set a security code to lock configuration settings
  • Set a security code to lock configuration settings
  • Configure dimming options such as Partial-ON, Partial-OFF, and Partial-OFF timeouts
  • Out-of-the-box configuration default mode; Auto-ON / auto-OFF with 10 min time out, Sensitivity set to 75%, Nightlight and daylighting hold-off disabled

General Information

Name: Leviton ODD10-IDW Smart Wallbox Bluetooth Passive Infrared, 10A, 0-10V, 120-277V
Category: Leviton, Smart Home, Smart Dimmers & Light Switches
UPC Code:
Country of Origin: . Country of origin is subject to change.
