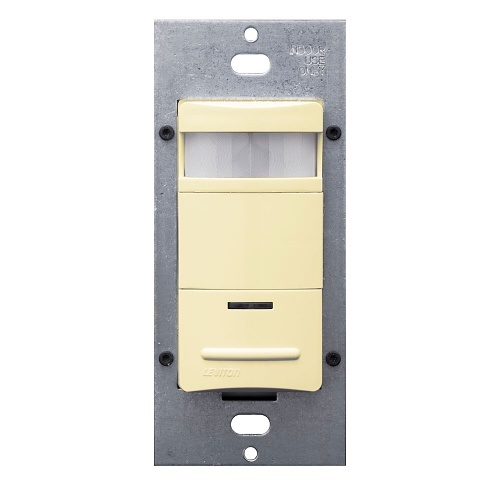

Leviton ODS06-IDI Occupancy Sensor, PIR, Wall Switch, 120-277V, Ivory
ODS06-IDI | LV-ODS06IDI
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Passive Infrared wallbox occupancy sensor, Single Relay, photocell controlled, Low profile, 180 degree field of view, 1600 sq ft, Adjustable Blinders, Time Delay 30s-30. 120/277VAC, 60Hz, AutoON/ManualON selectable, CEC Title 24 Compliant, UL Listed, RoHS Compliant, Color; Ivor. The Decora ODS06 Passive Infrared (PIR) Wall Switch Occupancy Sensor is specifically designed to meet the commercial needs of LED load requirement. Smaller loads such as LEDs can produce high inrush currents that can severely shorten the lifespan of low amperage device. To resolve this issue, the ODS06 features industry exclusive High Inrush Stability (...) circuitry to handle these loads and offer unmatched durability and performance.
Main Features
- Fits in standard wallbox and replaces single-pole wall switch. Gangable with other units
- Low-profile design eliminates obtrusive appearanc. Elegant Decora wallplates complement any interior for sleek aesthetics; uses Decora wallplates and coordinates with Leviton’s popular line of Decora wiring devices

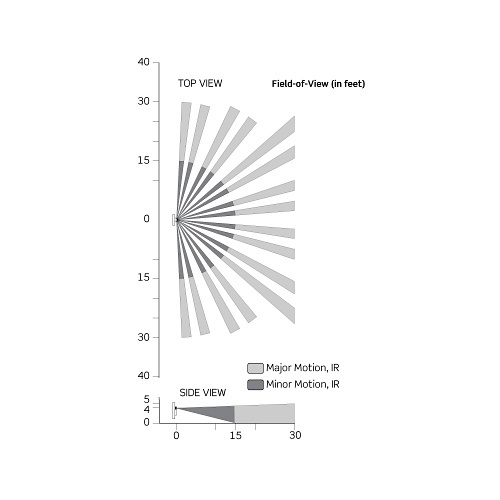

- 180° field-of-view provides approximately 1600 square feet (149 square meters) of coverage suitable for small offices, conference rooms, lounges and a variety of commercial areas
- Convenient pushbutton provides manual-ON/OFF light switching at any time
- Two dual element PIR sensors used to widen detection range
- Vandal resistant PIR lens

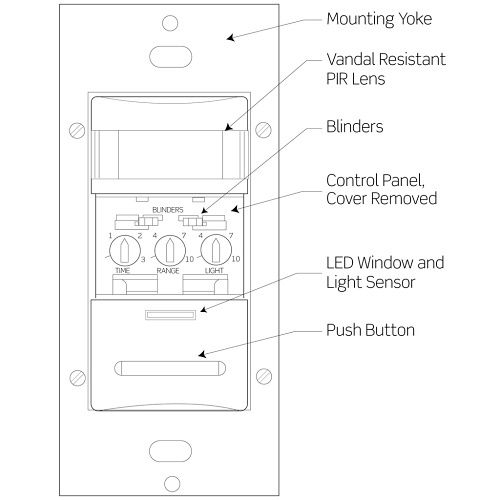

- Horizontal field-of-view may be adjusted between 180° and 180° of arc by using integral blinders located on either side of the len. No masking tape required
- Manual-ON/Auto-OFF mode for installations where manual-ON switching is required but auto-OFF switching is still desired for CA Title 24 energy savings
- To comply with CA Title 24, red LED indicator light flashes when sensor detects motion to verify detection is active
- Time Delay adjustment for delayed-OFF time settings of 30s (for walking test), 10min,
General Information
Name: Leviton ODS06-IDI Occupancy Sensor, PIR, Wall Switch, 120-277V, Ivory
Category: Leviton, Intrusion, Motion & Perimeter Sensors, PIR Motion Sensors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-ODS06IDI Brand Name Leviton Manufacturer Part Number ODS06-IDI
Application/Usage Classrooms, Conference Rooms, Lounges, Small offices Maximum Time Delay 30-Minute Sensor Type Occupancy
Operating Temperature (T-T) 32-122°F
Color Ivory
Input Voltage 120-277V AC
Mount Type Wall Mount
Limited Warranty 5-Year
