Product Overview
Occupancy Sensor, PIR wall switch. 4000VA 15A Single Relay, Time Delay 30 s-30 min. 120/208/220/230/240/277V AC, 50/60 Hz. 180° Field of view and blinders, audible warning, Manual on / Off Override, Auto Adapting, CEC Title 20/24 compliant. Made in USA with globally sourced components. The ODS15-ID uses passive infrared (PIR) detection technology to monitor a room for occupancy through a segmented Fresnel lens.
Main Features
- Fits in standard wallbox and replaces single-pole wall switch
- Low-profile design eliminates obtrusive "scanning-device" look
- Convenient pushbutton provides manual-ON / OFF light switching at any time
- Two dual element PIR sensors used to widen detection range
- Designed with an extensive "minor motion" area where even slight body movements will be detected
- Segmented Fresnel lens provides optimum sensitivity and performance
- Vandal resistant PIR lens
- Horizontal field-of-view may be adjusted between 180° and 60° of arc by using integral blinders located on either side of the lens
- Light sensor enables the load hold-OFF feature once level has been set
- To comply with Title 24, red LED indicator light flashes when PIR sensor detects motion to verify detection is active
General Information

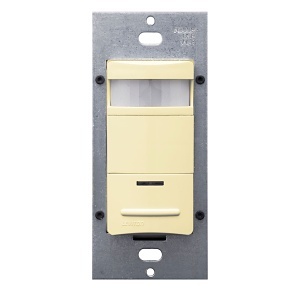

Name: Leviton ODS15-IAI PIR Occupancy Sensor, 15A
Category: Leviton, Intrusion, Motion & Perimeter Sensors, PIR Motion Sensors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-ODS15IAI Brand Name Leviton Manufacturer Part Number ODS15-IAI Product Line ODS15 Product Name Occupancy Sensor, PIR, Wall Switch, 2100SF, 120-277V, Ivory Product Type Switch
Application/Usage Classrooms, Conference rooms, Heavier loads, Lounges, Private Restrooms, Small Offices, Storage areas
Color Ivory Depth 1.83" Height 4.06" Width 1.75"
Input Voltage 120V AC, 230V AC, 277V AC Maximum Frequency 50/60 Hz
Switch Type Single-Pole
Limited Warranty 5-Year
Certifications & Standards NOM, UL Listed/CSA Certified Complies with California Title 24 Energy Code Complies with FCC Regulations, USMCA Compliant Country of Origin US
