Leviton

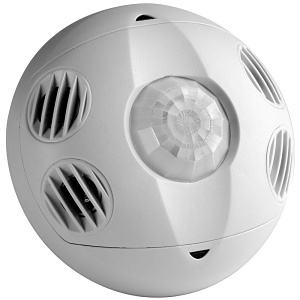

Leviton OSC10-MWW Occupancy Sensor, Multi-Technology (PIR/US), Ceiling Mount, True White
OSC10-MWW|LV-OSC10MWW
Leviton
Leviton OSC10-MWW Occupancy Sensor, Multi-Technology (PIR/US), Ceiling Mount, True White
OSC10-MWW|LV-OSC10MWW
Key Features
- Self-adjusting; internal microprocessor continually analyzes, evaluates and adjusts the sensitivity and time dela. Performance is kept at a maximum and user complaints are eliminated
- Fast, simple installation; easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment for 360° rotation and flexibility
- Maximum reliability, low cost; digital circuitry uses a minimum of components
Key Features
- Self-adjusting; internal microprocessor continually analyzes, evaluates and adjusts the sensitivity and time dela. Performance is kept at a maximum and user complaints are eliminated
- Fast, simple installation; easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment for 360° rotation and flexibility
- Maximum reliability, low cost; digital circuitry uses a minimum of components
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Self-adjusting; internal microprocessor continually analyzes, evaluates and adjusts the sensitivity and time dela. Performance is kept at a maximum and user complaints are eliminated
- Fast, simple installation; easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment for 360° rotation and flexibility
- Maximum reliability, low cost; digital circuitry uses a minimum of components
Leviton
Leviton OSC10-MWW Occupancy Sensor, Multi-Technology (PIR/US), Ceiling Mount, True White
OSC10-MWW | LV-OSC10MWW
Please sign in to view pricing and availability and to add to cart.
Accessories
Magnetic Contacts
ADI # 0E-SRFMTOD2W
MODEL # 0E-SRFMTOD2W
0E-SRFMTOD2W|0E-SRFMTOD2W
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
Occupancy Sensor lighting control, Ceiling Mounted, Multi-technology, 24VDC, 35mA power consumption, 1000 sq ft, 360 degree (major motion; PIR; 40' diameter; U/S; 46'Lx23'W, minor motion; U/S; 34'Lx17'W), red LED=PIR, green LED-U/S, auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', cUL/NOM listed, CEC Title 24 compliant Color; true-whit. Occupancy Sensor, Ceiling Mounted, Multi-technology, 24VDC, 25mA power consumption, 500 sq ft, 180 degree (major motion; PIR;20' radius; U/S; 23'Lx23'W, minor motion; U/S; 17'Lx17'W), red LED=PIR, green LED=U/S, auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', cUL/NOM listed, CEC Title 24 complian. Color; true-whit. Do you have a question about an occupancy sensor or vacancy sensor.
Main Features
- Self-adjusting; internal microprocessor continually analyzes, evaluates and adjusts the sensitivity and time dela. Performance is kept at a maximum and user complaints are eliminated
- Fast, simple installation; easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment for 360° rotation and flexibility
- Maximum reliability, low cost; digital circuitry uses a minimum of components
- Small motion sensitivity; the ultrasonic technology provides excellent small motion sensitivity
- Wide coverage; units from 500 to 2000 s. ft
- Rugged, high-impact, injection molded plastic device, custom true white color to meet true white applications
- Applications; cafeterias, conference rooms, day care centers, workspaces, offices with cubicles
General Information
Name: Leviton OSC10-MWW Occupancy Sensor, Multi-Technology (PIR/US), Ceiling Mount, True White
Category: Leviton, Intrusion, Motion & Perimeter Sensors, PIR Motion Sensors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number LV-OSC10MWW Brand Name Leviton Manufacturer Part Number OSC10-MWW
-
Maximum Time Delay 30-Minute Sensor Type Occupancy
-
Operating Temperature (T-T) 32-104°F
-
Application/Usage Cafeterias, Classrooms, Computer rooms, Conference Rooms, Day care centers, Executive, Filing rooms, Offices with cubicles, open and private offices, Open areas, Open warehouses, Restrooms, Stairwells, Storage rooms, Workspaces Color White
-
Input Voltage 24V DC
-
Mount Type Ceiling Mount
-
Limited Warranty 5-Year
