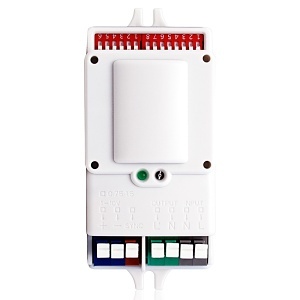

Leviton OSM3D-DDW High Frequency Microwave Occupancy Sensor Lighting Control with 0-10V Dimming, 360°, 3-30' Range Adjustable
OSM3D-DDW
|LV-OSM3DDDW
Shop all Leviton
Leviton OSM3D-DDW High Frequency Microwave Occupancy Sensor Lighting Control with 0-10V Dimming, 360°, 3-30' Range Adjustable
OSM3D-DDW | LV-OSM3DDDW
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
High Frequency Microwave Occupancy Sensor lighting control with 0-10V Dimming, .8GHz +/- 75MHz ISM Wave Band, 360 degree detection, 3-30 feet range adjustabl. 5s-30m adjustable, Built-in adjustable daylight sensor, Green LED, Terminal Connectors, 120-277VAC, 50/60Hz, Power Consumption andlt;1W, Whit. The Leviton 0-10V Dimming High Frequency Occupancy Sensor uses a high frequency sensor to detect motion and provide automatic switching or dimming when used in combination with 0-10V LED drivers or ballast.
Main Features
- Automatic switching or dimming
- Built-in daylight sensor
- Designed to detect movement behind lowdensity fixture materials or behind objects made of plastic or glass
- The sensor’s compact size allows it to easily fit in most luminaires
- LED lighting compatible
- Detection area, time delay and daylight threshold can be set via sensor DIP switch
- Wide detection area-range up to 52 feet
- Mounting height up to 49 feet
- Hold times range from 5 seconds to infinity
- 150° wall detection, 360° ceiling detection
General Information
Name: Leviton OSM3D-DDW High Frequency Microwave Occupancy Sensor Lighting Control with 0-10V Dimming, 360°, 3-30' Range Adjustable
Category: Leviton, Intrusion, Motion & Perimeter Sensors, PIR Motion Sensors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-OSM3DDDW Brand Name Leviton Manufacturer Part Number OSM3D-DDW
Application/Usage Any space used by a multi-tech sensor, Cafeterias, Conference rooms, Open office cubicles, Walls or fixtures including wall sconces and wall packs, Warehouses Sensor Type Occupancy
Color White
Input Voltage 120-277V AC
Mount Type Base Mount, Surface Mount
Limited Warranty 5-Year
