Product Overview
Leviton’s pin and sleeve devices are easy to us. Matching amperage and voltage requirements is literally as easy as matching colors and telling time. The amperage rating is related to the size of the device; devices of the same amperage are the same size. The voltage rating is related to the location of the ground sleeve on the female device and the number of conductor. This location is based on a clock face with the key-way at the 6 o’clock position. The ground sleeve is positioned at a specific hour location, depending on the device’s voltage rating.
Main Features
- Easy to use with color-coded amperage and voltage matching
- Amperage rating determines device size for consistency
- Voltage rating based on ground sleeve location for safety
- Ground sleeve positioned by clock face for easy identification
- Designed for 30A 5WI pin and sleeve devices
- Specific hour location for voltage rating
General Information

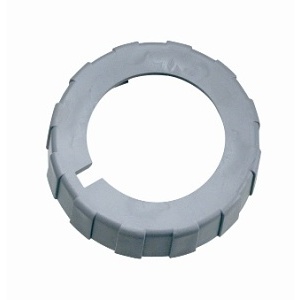

Name: Leviton RA530 Bayonet Ring for 30A 5-Wire Pin / Pin / Sleeve
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Plugs
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-RA530 Brand Name Leviton Manufacturer Part Number RA530
Color Gray
