Leviton RCD20-C02 IRC Dimmer Room Control Kit 347V 2-Zone, Green
RCD20-C02 | LV-RCD20C02
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

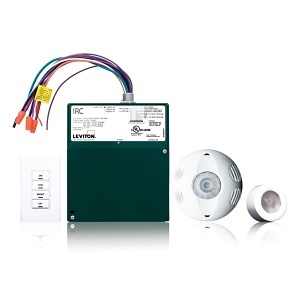

IRC Dimming Room Control Kit, includes Low Voltage devices; 2-Zone Room Controller with 2x 0-10V outputs and 2x 347V relays, M/T Occupancy Sensor (OSC20-M0W), 4-button switch (RLVSW-4LW), Photocell (ODC0P-00W), 347V AC Canadian model, 50/60 Hz. Title 24 compliant, ASHRAE 90.1 compliant. The Leviton Integrated Room Control (IRC) combines single room occupancy sensing, daylight harvesting, 0-10V dimming, Partial ON, Partial OFF and demand response capabilities into a single, easily installed package. IRC features several methods of Ladderless Commissioning for install-and-forget convenience, including the AutoCal feature which automatically sets the maximum light output levels and calculates light loss factor for accurate lumen maintenance. The IRC ships as either custom kits or a complete kit with a factory configured occupancy sensor, photocell, and 4-button switch. The 4-button switch provides ON, raise, lower, and OFF functionality. The performance, features, and capabilities of the IRC product provide a simple and cost-effective stand-alone energy management solution to maximize energy efficiency and meet energy code mandates for virtually any commercial room control application.
Specifications
ADI Part Number LV-RCD20C02 Brand Name Leviton Manufacturer Part Number RCD20-C02 Product Line IRC Product Name IRC Dimming Kit, 2-Zone Room Control 347V Product Type Dimming Kit
Environmentally Friendly No
