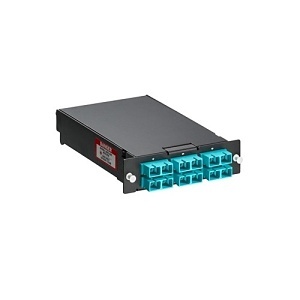

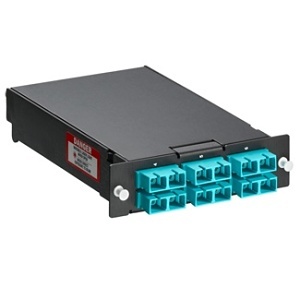

Leviton SPSCS-12A FastSplice SDX Pigtail Fusion Module with Duplex SC Adapters and 12-Fiber OM3 SC/PC Individual Pigtails, Black
SPSCS-12A
|LV-SPSCS12A
Leviton SPSCS-12A FastSplice SDX Pigtail Fusion Module with Duplex SC Adapters and 12-Fiber OM3 SC/PC Individual Pigtails, Black
SPSCS-12A | LV-SPSCS12A
Please sign in to view pricing, availability, and to add to cart.
Product Overview
APPLICATION
SDX 12- and 24-Fiber FastSplice Modules protect and organize heat-shrink fusion spliced fibers (up to 12 or 24 fibers) inside a fiber enclosure. The modular design enables faster field splicing and simple management of pigtails within the housing. Splice modules eliminate the need for individual splice trays within a fiber enclosure and provide optimal organization and slack management of fibers. Typical applications include Wide Area Networks (WAN), campus environments, high-count riser buildings, government installations, data centers, and central offices.
Main Features
- 12-fiber adapter bulkhead and splice holders integrated, eliminating the need of splice trays
- Individual compartments provide slack storage and bend radius guides for respective backbone cable
- Modular design allows for ease of maintenance of individual spliced fiber and allows for scaling up without impacting existing fibers
- Designed to terminate with distribution or loose-tube style fiber cable
- Installs in SDX rack-mount and wall-mount fiber enclosures
- Uses duplex LC or SC adapters
- Zirconia ceramic sleeve used on LC and SC adapters
- Individual splice holder accepts up to 12 heat-shrink style splice sleeves, two each included
General Information
Specifications
ADI Part Number LV-SPSCS12A Application/Usage Fiber Brand Name Leviton Country of Origin US Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number SPSCS-12A Product Line FASTSPLICE Product Name FastSplice Splice Cassette Product Type Splice Cassette
Color Black
Package Contents - FastSplice Splice Cassette
- 40 mm Heat Shrink Style Splice Sleeves
- Tie Wraps
- Braided Mesh Sleeve
