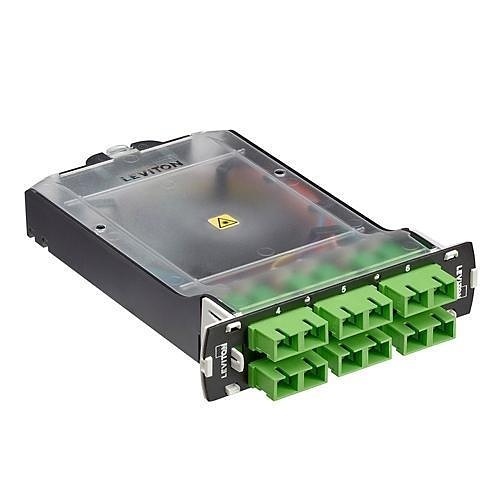

Leviton SPSCS-2VC SDX Pigtail Fusion Splice Module Pre-Loaded with Duplex SC Adapters and 12-Fiber OS2 SC/APC Individual Pigtails
SPSCS-2VC
|LV-SPSCS2VC
Shop All Leviton
Leviton SPSCS-2VC SDX Pigtail Fusion Splice Module Pre-Loaded with Duplex SC Adapters and 12-Fiber OS2 SC/APC Individual Pigtails
SPSCS-2VC | LV-SPSCS2VC
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
OPT-X SDX LC, SC and MPO Splice Modules protect and organize heat-shrink fusion spliced fibers (up to 12, 24 or 72 fibers) for installation in an SDX fiber enclosure or panel. The modular design enables faster field splicing and simple management of pigtails within the housing. Splice modules eliminate the need for individual splice trays within a fiber enclosure and provide optimal organization and slack management of fibers. Typical applications include Wide Area Networks (WAN), campuses, high-count riser buildings, government installations, data centers and central offices.
Main Features
- Modules integrate fiber adapter bulkhead (12 or 24 fibers) and splice holders, eliminating need of splice trays
- Integrated latching tabs allow for one-handed insertion and removal from SDX enclosures and panels
- Offered in single-mode (OS2) UPC, APC and laser optimized multimode (OM3 and OM4) fiber types in LC, SC or MPO connectivity
- No proprietary tool or fixture required for fusion splicing
- 12-fiber color-coded 900 µm pigtail assembly allows for easy identification when fusion splicing
- Patented internal shutters on LC adapters eliminate the need for dust plugs to reduce waste, speed up deployment and ensure safer installations
- Modular design allows for easy maintenance of individual spliced fiber and scaling up without impacting adjacent fibers
- Accessory kit includes heat-shrink splice sleeves, braided mesh sleeve, build-up tape and tie wraps
- Patented MPO pigtail assembly allows for easy routing within module and no-preparation mass fusion splicing
General Information
Name: Leviton SPSCS-2VC SDX Pigtail Fusion Splice Module Pre-Loaded with Duplex SC Adapters and 12-Fiber OS2 SC/APC Individual Pigtails
Category: Leviton, Data Comm & Networking, Patch Panels, Fiber Optic Patch Panels
UPC Code: 078477004845
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-SPSCS2VC Brand Name Leviton Manufacturer Part Number SPSCS-2VC
Material 16 gauge steel, Polycarbonate
Color Green
Country of Origin CN
