Vaddio 999-9950-100B RoboSHOT 20 UHD OneLINK HDMI PTZ Camera System, Black
999-9950-100B
|MV-99950100B
Shop all Vaddio by Legrand
Vaddio 999-9950-100B RoboSHOT 20 UHD OneLINK HDMI PTZ Camera System, Black
999-9950-100B | MV-99950100B
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

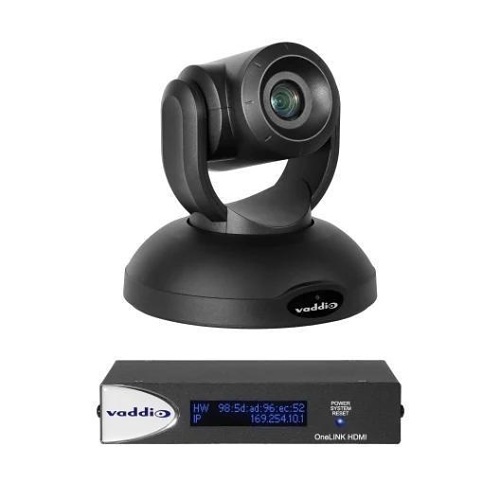

This system combines the RoboSHOT 20 UHD camera with the OneLINK HDMI Receiver for HDBaseT Cameras to extend power, video and control over a single cable for simple, tidy installation. Production-quality RoboSHOT 20 UHD provides brilliant 4K video footage for broadcasting or live streaming applications.
Main Features
- Back-illuminated 9.03 Megapixel, ultra high definition 1/2.3-type sensor delivers native 2160p/30 (3840 x 2160) video
- Horizontal field of view 74° (wide) to 4.8° (tele) at 20x
- Imaging and performance comparable to 3-chip cameras
- Precise pan and tilt movements from 0.35° to 120° per second
- Presenter-friendly IR remote control
- Administrative control via web interface
- Simple, clutter-free camera extension with HDBaseT technology
- Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
General Information
Name: Vaddio 999-9950-100B RoboSHOT 20 UHD OneLINK HDMI PTZ Camera System, Black
Category: Vaddio by Legrand, Pro AV, Commercial Video Conferencing, Video Conference Cameras
UPC Code: 840077507855
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number MV-99950100B Brand Name Vaddio by Legrand Manufacturer Part Number 999-9950-100B
Field of View Horizontal Optical Zoom 1.67x, 12x, 20x
Image Sensor Type CMOS
TAA Compliant Yes
Maximum Operating Temperature 140°F Minimum Operating Temperature 23°F Operating Humidity 95%
Minimum Illumination 100 lux, 3.0 lux
Color Black Depth 7.7" Dimensions 26 x 15 x 15" Height 7.9" Weight 6lb Width 8"
Limited Warranty 3-Year
Certifications CE, FCC, HDBaseT, TAA, UL Listed Environmental Certification CE, FCC, UL Environmentally Friendly Yes Features Administrative control via web interface, Back-illuminated 9.03 Megapixel, ultra high definition 1/2.3-type sensor delivers native 2160p/30 (3840 x 2160) video, Imaging and performance comparable to 3-chip cameras, Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m), Precise pan and tilt movements from 0.35° to 120° per second, Presenter-friendly IR remote control, Simple, clutter-free camera extension with HDBaseT technology Package Contents 12V power supply with AC cord set(s), 48V power supply with AC cord set(s), EZCamera RS-232 Control Adapter, OneLINK HDMI Interface, RoboSHOT 20 UHD PTZ camera (in silver/black, black or white), Thin Profile Wall Mount (black or white) with mounting hardware and installation manual, Vaddio IR Remote Commander
