Overview
Specifications
Documents
Product Overview
The powerCON TRUE1 is a locking true mains connector for harsh and demanding applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Main Features
- Heavy duty sealed power connector for harsh and demanding environment
- Lockable single phase connector
- ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
- Uses high impact UV-resistant materials
- Traditional interior and instant keys with the GEMRP2ASe2
- UL and CSA Certified according to UL 60320-1 and CSA 22.2 No. 60320-1
- True mains connector with breaking capacity (CBC)
- Unique NEUTRIK locking bushing and strain relief for cable diameters 6mm to 12mm (0.23-0.47")
- IP65 and IP67 (mated or with closed cap)
- Easy and reliable twist lock system
General Information

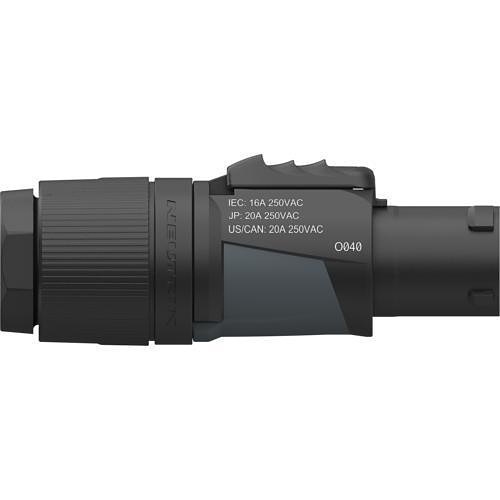

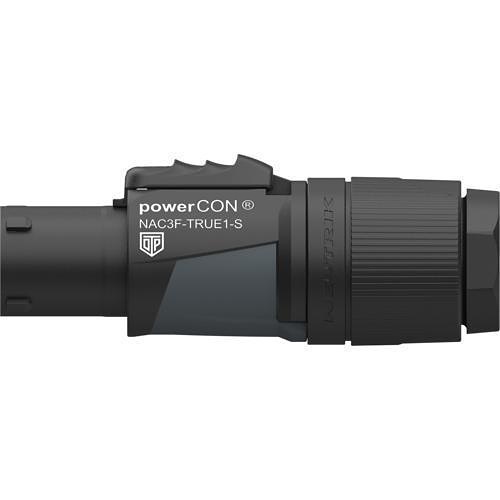

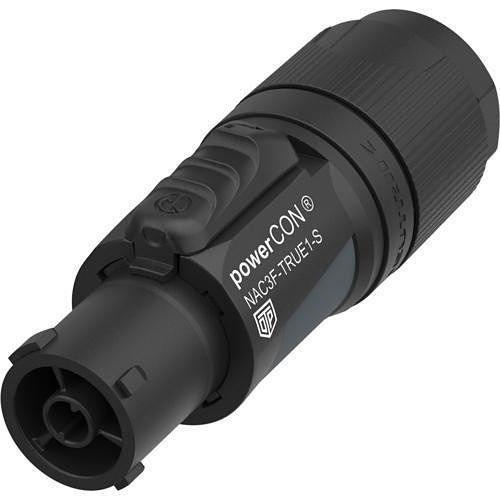

Name: Neutrik NAC3F-TRUE1-S powerCON TRUE1 Cable Connectors
Category: NEUTRIK, Batteries & Power Supplies, Electrical Plugs & Connectors, Power Connectors
UPC Code:
Country of Origin: Hungary. Country of origin is subject to change.
Specifications
ADI Part Number NM-NAC3FTRUS Brand Name NEUTRIK Manufacturer Part Number NAC3F-TRUE1-S
Ingress Protection Rating IP65, IP67
Environmental Certification CSA, UL
