NEUTRIK NAC3MM-1 CBC Coupler for Linking Power Cables with NAC3FXXA/B
NAC3MM-1
|NM-NAC3MM1
Shop All NEUTRIK
NEUTRIK NAC3MM-1 CBC Coupler for Linking Power Cables with NAC3FXXA/B
NAC3MM-1 | NM-NAC3MM1
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

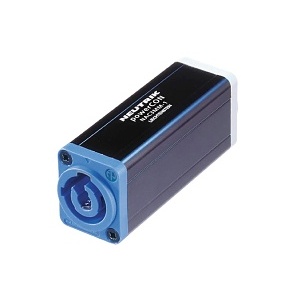

The Neutrik NAC3MM-1 CBC Coupler is designed for linking power cables with NAC3FXXA/B connectors, serving as a robust power connection solution. It features the NAC3MPA-1 (power in) male to NAC3MPB-1 (power out) male coupler configuration, supporting a rated current of 20 A rms per contact and a voltage of 240 V AC. This powerCON D shape adapter includes a locking 3 conductor AC connector with contacts for line, neutral, and pre-mating ground, ensuring a secure and reliable connection. PowerCON connectors are crafted for rugged use with locking devices but should not be connected or disconnected under load or while live.
Main Features
- NAC3MPA-1 male to NAC3MPB-1 male powerCON D shape adapter coupler
- Rated for 20 A rms current per contact and 240 V AC voltage
- Locking 3 conductor connector with line, neutral, and pre-mating ground contacts
- Designed for linking power cables with NAC3FXXA/B connectors
- Replaces appliance couplers for rugged and safe power connections
- Not designed for connection/disconnection under load or live conditions
General Information
Name: NEUTRIK NAC3MM-1 CBC Coupler for Linking Power Cables with NAC3FXXA/B
Category: NEUTRIK, Batteries & Power Supplies, Electrical Cords & Connectors, Power Connectors
UPC Code: 7613187010330
Country of Origin: United Kingdom. Country of origin is subject to change.
Specifications
ADI Part Number NM-NAC3MM1 Brand Name NEUTRIK Manufacturer Part Number NAC3MM-1 Product Line powerCON
