NEUTRIK NBB75DFIB-P Isolated BNC Chassis Connector with D-Shape Housing, Black
NBB75DFIB-P | NM-NBB75DIBP
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Isolated BNC chassis connector, feedthrough in black D-shape housing, protruding version (makes locking and unlocking of conventional BNC cable connectors easy) Neutriks BNC chassis connectors offer a true 75 ohms design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use in a D-shape housing (audio industry standard).
Main Features

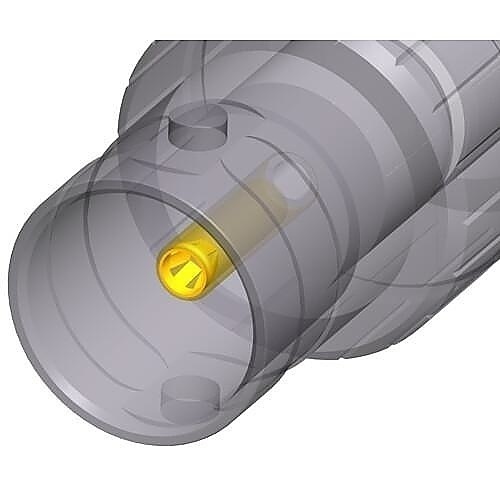

- Gold plated cage type center contact
- True 75omhs design meets the stringent HD requirements
- Isolated panel mount (solves potential grounding problems and prevents co mmon-mode influence with other connections conducted over the same panel ground potential)
- Standard D-shape housing
- Protruding bulkhead jack (makes locking and unlocking of conventional BNC cable connectors easy)
- Color coding possible
General Information
Name: NEUTRIK NBB75DFIB-P Isolated BNC Chassis Connector with D-Shape Housing, Black
Category: NEUTRIK, Data Comm & Networking, Cable Connectors, Coaxial Cable Connectors & Splitters
UPC Code:
Country of Origin: Liechtenstein. Country of origin is subject to change.
Specifications
ADI Part Number NM-NBB75DIBP Brand Name NEUTRIK Connector Gender Female Manufacturer Neutrik Manufacturer Part Number NBB75DFIB-P Product Name Neutrik NBB75DFIB-P RF Connectors / Coaxial Connectors BNC Product Series NBB Product Type BNC Chasis
Impedance 75 ohms
Connector Type BNC
Color Black
Voltage Rating 50V
Country of Origin LI Features Color coding possible, Gold plated cage type center contact, Isolated Panel Mount (Solves Potential Grounding Problems and Prevents Common-mode Influence With Other Connections Conducted Over The Same Panel Ground Potential), Protruding Bulkhead Jack (Makes Locking and Unlocking Of Conventional Bnc Cable Connectors Easy), Standard D-shape Housing, True 75 Ohm Design Meets The Stringent Hd Requirements
