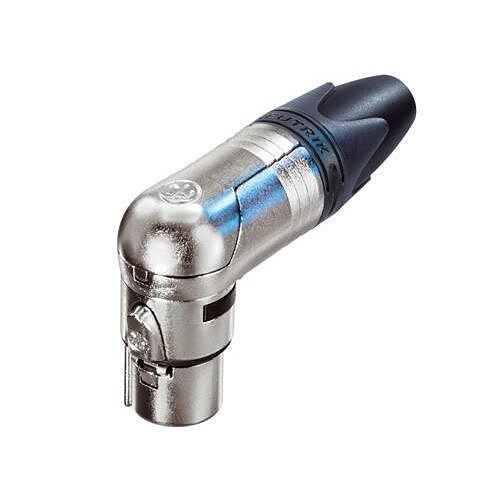

Neutrik NC3FRX 3-Pole Right Angle Female XLR Cable Connector, Silver Contacts, Nickel Housing
NC3FRX
|NM-NC3FRX
Shop All NEUTRIK
Neutrik NC3FRX 3-Pole Right Angle Female XLR Cable Connector, Silver Contacts, Nickel Housing
NC3FRX | NM-NC3FRX
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
3 pole right angle female cable connector, nickel housing, silver contacts. The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Main Features
- Unique cage design of female contact for low contact resistance and high integrity
- Extra slim right-angle connector
- Female connector with improved solid metal latch which is larger and easier to handle
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Coloured rings and boots available for coding or identification
- 5 selectable cable outlet positions
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Additional ground spring contacts for better shell ground continuity
- Boot with polyurethane gland gives high protection to cable bending stresses
- Sleek and ergonomic design - valuable and handy
General Information
Name: Neutrik NC3FRX 3-Pole Right Angle Female XLR Cable Connector, Silver Contacts, Nickel Housing
Category: NEUTRIK, Pro AV, Commercial Connector Cables, Pro Microphone Cables
UPC Code:
Country of Origin: Liechtenstein. Country of origin is subject to change.
Specifications
ADI Part Number NM-NC3FRX Brand Name NEUTRIK Manufacturer Part Number NC3FRX
Connector Plating Nickel
Ingress Protection Rating IP40
Connector Type XLR
Voltage Rating 50V
Features 5 selectable cable outlet positions, Additional ground spring contacts for better shell ground continuity, Boot with polyurethane gland gives high protection to cable bending stresses, Coloured rings and boots available for coding or identification, Extra slim right-angle connector, Female connector with improved solid metal latch which is larger and easier to handle, Female contact incorporates a solder barrier to prevent solder running into the contact mating area, Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster, Sleek and ergonomic design - valuable and handy, Unique cage design of female contact for low contact resistance and high integrity
