NEUTRIK

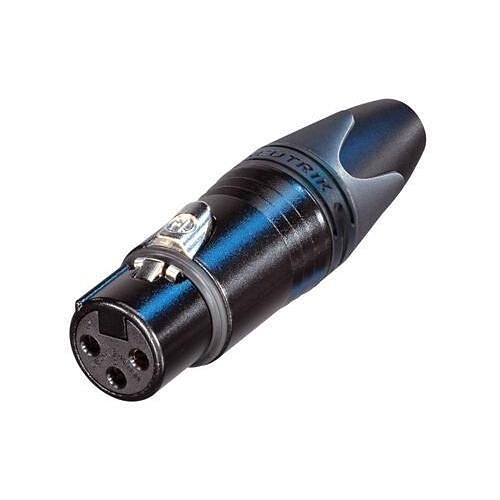

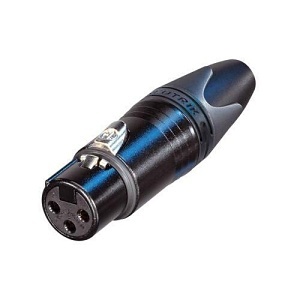

Neutrik NC3FXX-HA-BAG 3-Pole Female Cable Connector with Crimp Termination (Standard B Crimp), Silver Contacts, Black Metal housing

NC3FXX-HA-BAG

NM-NC3FXHA

Compare

Sign In for Dealer Pricing

New to ADI?Become a Customer

Data Sheet

Shop All NEUTRIK

Neutrik NC3FXX-HA-BAG 3-Pole Female Cable Connector with Crimp Termination (Standard B Crimp), Silver Contacts, Black Metal housing

NC3FXX-HA-BAG | NM-NC3FXHA

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

3-Pole female cable connector with black metal housing, silver contacts and crimp termination (standard B crimp). Special version of the XLR cable connector XX Series with crimp terminals.

Main Features

Unique cage design of female contact for low contact resistance and high integrity
Gastight and Solderless connection (RoHS compliant)
Additional ground spring contacts for better shell ground continuity
Boot with polyurethane gland gives high protection to cable bending stresses
Sleek and ergonomic design, valuable and handy
Crimp termination with standard B-crimp tool (B-crimp acc. IEC 60352-2)
Female connector with improved solid metal latch which is larger and easier to handle
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Colored rings and boots available for coding or identification
Rugged zinc diecast shell, longlasting and dependable

General Information

Name: Neutrik NC3FXX-HA-BAG 3-Pole Female Cable Connector with Crimp Termination (Standard B Crimp), Silver Contacts, Black Metal housing

Category: NEUTRIK, Pro AV, Commercial Connector Cables, Pro Cable Adapters

UPC Code:

Country of Origin: Liechtenstein. Country of origin is subject to change.

Specifications

: ADI Part Number NM-NC3FXHA Brand Name NEUTRIK Manufacturer Part Number NC3FXX-HA-BAG Package Length 0

: Ingress Protection Rating IP40

: Connector Type XLR

: Color Black

Documents and Resources

Download All Documents

Product Data Sheet

Installation Instructions

Manufacturer Brochure
