Image of NM-NE8FDPUTO
Shop all NEUTRIK

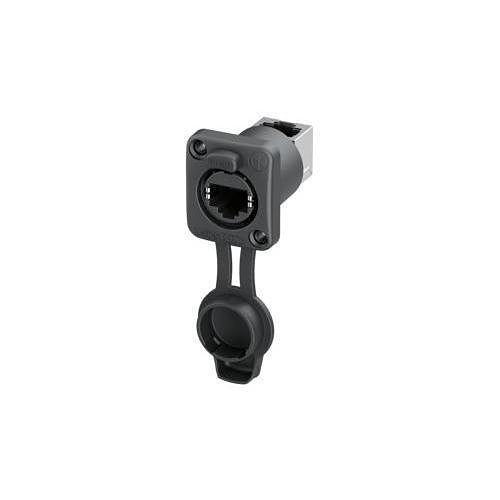

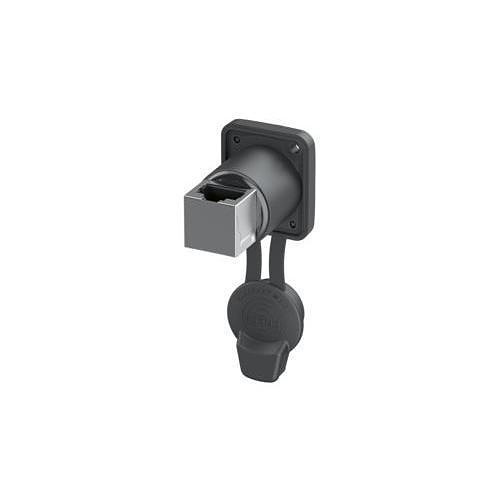

Neutrik NE8FDPU-TOP RJ45 Feedthrough Receptacle, Combined with Sealing Kit

NE8FDPU-TOP|NM-NE8FDPUTO
Shop all NEUTRIK

Neutrik NE8FDPU-TOP RJ45 Feedthrough Receptacle, Combined with Sealing Kit

NE8FDPU-TOP|NM-NE8FDPUTO
Key Features
  • IP65 and IP67 rating to protect from water and dust ingress (even in unmated and open sealing cap condition)
  • UV protection
  • 100 W power delivery according to IEEE 802.3bt Type 4 Class 8
Key Features
  • IP65 and IP67 rating to protect from water and dust ingress (even in unmated and open sealing cap condition)
  • UV protection
  • 100 W power delivery according to IEEE 802.3bt Type 4 Class 8

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • IP65 and IP67 rating to protect from water and dust ingress (even in unmated and open sealing cap condition)
  • UV protection
  • 100 W power delivery according to IEEE 802.3bt Type 4 Class 8
Image of NM-NE8FDPUTO
NEUTRIK

Neutrik NE8FDPU-TOP RJ45 Feedthrough Receptacle, Combined with Sealing Kit

NE8FDPU-TOP | NM-NE8FDPUTO

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The "etherCON TOP airtight" chassis connector is the perfect solution for demanding outdoor applications and the harshest conditions. This innovative product is part of the etherCON product group and belongs to our premium data line. With an impressive array of features and a particular focus on protection and performance, the "etherCON TOP airtight" is the choice for professionals who require absolute reliability.With the etherCON TOP airtight, you can count on a secure connection, even in the most extreme outdoor conditions. Rely on its protective features and high performance to ensure data connections that meet the most stringent requirements. Trust in TRUE OUTDOOR PROTECTION with this outstanding chassis connector from NEUTRIK-your link to the future.

Main Features

  • IP65 and IP67 rating to protect from water and dust ingress (even in unmated and open sealing cap condition)
  • UV protection
  • 100 W power delivery according to IEEE 802.3bt Type 4 Class 8
  • Easy maintenance due to front-mount design
  • Corrosion resistance
  • Airtightness for production line tests to ensure TRUE OUTDOOR PROTECTION on devices
  • Seamless design language of etherCON TOP and upcoming xlrCON TOP
  • ESD protection up to 2 kV

General Information

Name: Neutrik NE8FDPU-TOP RJ45 Feedthrough Receptacle, Combined with Sealing Kit
Category: NEUTRIK, Pro AV, Commercial Connector Cables, Pro Cable Adapters
UPC Code:
Country of Origin: . Country of origin is subject to change.
