BGR = Breakthrough Next-Generation Rack
This is the "Next Generation" Rack you have been wanting ! BGR-SA series racks have higher weight capacities, provide more useable rackspace, and incorporate more functionality than any other rack system on the market. Features the revolutionary patent-pending LeverLock™ system for tool free installation of cable management accessories. New options include brush grommet rear doors and problem-solving extender bays. Choose a BGR enclosure for the highest level of space efficiency and strength available, and to enable the use of the latest options for installation flexibility. This stand-alone version includes fixed vented side panels.
- Breakthrough design provides more useable rack height - for example, the 45 space version is shorter than 44 space alternative models

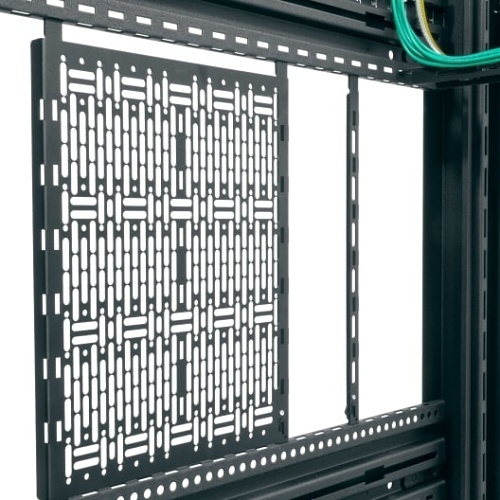

- Accepts patent-pending LeverLock™ system accessories for fast, flexible cable management and mounting of small devices such as interface boxes, power supplies, and relay modules
- Unique new extender bay adds 3" of useable depth to the front or rear of the enclosure at any time. Extender bays allow the use of existing doors and can even be stacked for greater depth
- Standard front and rear adjustable wide, heavy-gauge, 10-32 threaded rackrail with numbered rackspace increments speeds equipment mounting
- Wide open bottom accepts multiple base options
- Finished in a durable black textured powder coat
- Top options include solid, vented, and thermostatically controlled fan tops
- Standard vented door accepts optional doors
- Accepts LeverLock™ system tool free cable management accessories
- Cable entry choices include generous laser knockouts and choice of trade openings and/or grommetted pass-throughs
- The generous 21" wide top opening provides for full-width cable and conduit entry, and includes vertical cable entry tie points on both sides
- Optional brush grommet rear door kit can be mounted top or bottom to provide a large cable passage with easy access to the cables without fishing
Name : Middle Atlantic BGR-3832LRD BGR Series Open Frame Rack, 32" Deep, 38 RU, Black , Middle Atlantic by Legrand
Category : Rack Cabinets & Frames
UPC Code : 656747140242
Country of Origin : United States. Country of origin is subject to change.
ADI Part Number : NO-BGR3832LR
Brand Name : Middle Atlantic
Manufacturer : Legrand Group
Manufacturer Part Number : BGR-3832LRD
Product Name : BGR Series Enclosure
Product Series : BGR
Product Type : Rack Cabinet
Depth : 32"
Depth (mm) : 812.8
Form Factor : Floor Standing
Height : 70.6"
Height (mm) : 1793.875
Product Color : Black
Product Material : Steel
Rack Depth : 29.40"
Rack Depth (mm) : 746.76
Rack Height : 38U
Rack Width : 19"
Rack Width (mm) : 482.6
Static/Stationary Weight Capacity : 12000 lb
Static/Stationary Weight Capacity (g) : 5443108.44
Width : 23"
Width (mm) : 584.2
Limited Warranty : Lifetime
Environmental Certification : GREENGUARD, RoHS
Environmentally Friendly : Yes
Features : Adjustable Mounting Rails, Cable Management
