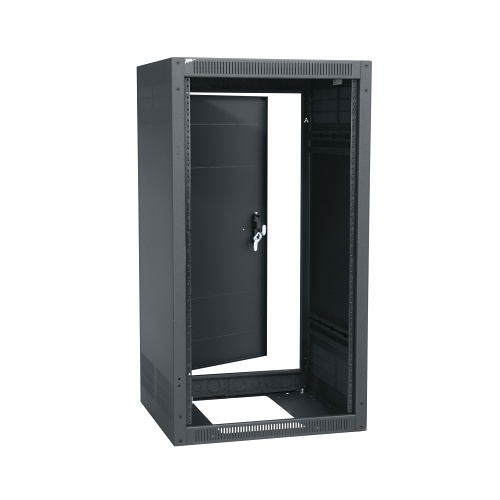

Middle Atlantic ERK-2120 ERK Series AV Floor Standing Rack, 20" Depth, 21U RMS
ERK-2120
|NO-ERK2120
Shop all Middle Atlantic by Legrand
Middle Atlantic ERK-2120 ERK Series AV Floor Standing Rack, 20" Depth, 21U RMS
ERK-2120 | NO-ERK2120
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
An economical standalone rack with solid sides, the ERK Series can also be ganged to create partitioned multi-bay installations for thermal management control, and security. It is seismically certified to protect your components when installed with ERK-Z4 brackets. 21RU and 20in deep. Fully welded construction for strength. Rack sides include top and bottom venting. Convenient lacing points and slotted rack rail brackets for cable management. Standard front adjustable 10-32 threaded rack rail with numbered spaces. Includes key-locked standard rear door.
Main Features
- Fully welded construction
- 2,500 lbs. weight capacity
- 1/8” thick structural steel internal braces
- UL listed in the US and Canada
- Seismic certified (when used with ERK-Z4 option) with an IP value of 1.5
- 22” OD width, available 20”, 25” or 28” OD depth
- 1/2”, 3/4”, 1” and 1-1/2” electrical knockouts on removable split rear plates top and bottom, easily removable for cable pass-through. Top p
- Standard front, optional rear 11-gauge 10-32 threaded, fully adjustable rackrail with numbered rackspace increments
- Keylocked solid rear door standard, optional vented rear doors available
- TAA Compliant
General Information
Name: Middle Atlantic ERK-2120 ERK Series AV Floor Standing Rack, 20" Depth, 21U RMS
Category: Middle Atlantic by Legrand, Residential AV, Residential Furniture & Racks, Rack Cabinets & Frames
UPC Code: 656747034190
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number NO-ERK2120 Brand Name Middle Atlantic by Legrand Manufacturer Legrand Group Manufacturer Part Number ERK2120 Product Model ERK-2120 Product Name ERK-2120 Stand-Alone Enclosure Rack Cabinet Product Series ERK Product Type Rack Cabinet
Material Steel
TAA Compliant Yes
Color Black Depth 20 Height 40.880000000000003 Maximum Weight Capacity 2500 lb Rack Height 21U Rack Width 19" Width 22
Finishing Black Wrinkle Powder Coated
Limited Warranty Lifetime
Certifications ASCE, TAA, UL Listed Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Package Contents - ERK-2120 Stand-Alone Enclosure Rack Cabinet
- UHF/VHF Antenna Knockouts
- 6 x Horizontal Lacer Bars
- Leveling Feet
- 12 x 8" Hook and Loop Cable Management Straps
- and more below
