Middle Atlantic ERK-3525-AV ERK Series AV Floor Standing Rack, 25" Depth, 35U RMS

ERK-3525-AV | NO-ERK3525AV

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

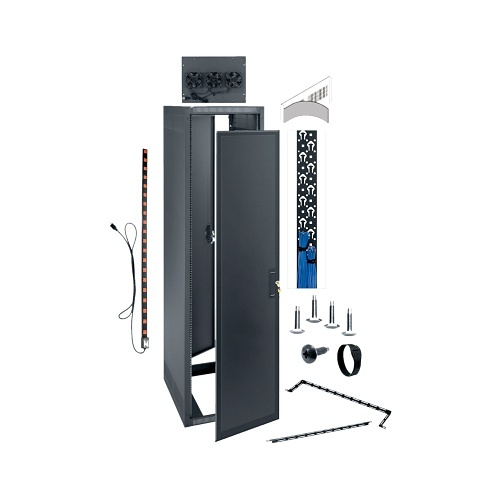

An economical standalone rack with solid sides, the ERK Series can also be ganged to create partitioned multi-bay installations for thermal management control, and security. It is seismically certified to protect your components when installed with ERK-Z4 brackets. 35RU and 25in Deep. Fully welded construction for maximum strength. Rack sides include top and bottom venting. Convenient lacing points and slotted rail brackets for cable management. Standard front and rear adjustable 10-32 threaded rack rail with numbered spaces. Includes key-locked standard rear door and solid front door. Comes configured with integrated fan top, vent blockers, and rear door vent. Includes (1) LACE-OP lacer strip, (4) straight and (2) offset lacer bars and (12) Velcro straps. Includes (2) PDT-1020C-NS corded power strips (20A, 10 outlet) corded vertical power strips. Includes (100) 10-32 threaded rack screws.

Main Features

All-steel construction and structural-steel braces guarantee exceptional strength and years of use.
Protects up to 650 lbs of essential equipment when used in conjunction with ERK-Z4 brackets.
All rack rails are finished in a durable "e-coat" to prevent clogged threads.
Rack rails are labeled in EIA standard rack-space increments, allowing for easy equipment alignment.
Pick and choose from Middle Atlantic's wide range of accessories to customize and expand your rack system.
Pre-installed washers on all 10-32 threaded rack screws save installation time.
Grounding/Bonding Studs have been provided to help you electrically ground and bond equipment per NEBS and NEC standards.
Rack tool-free layout and specification software is included for effective system design help.
An economical standalone rack with solid sides, the ERK Series can also be ganged to create partitioned multi-bay installations for thermal management control, and security
It is seismically certified to protect your components when installed with ERK-Z4 brackets

General Information

Name: Middle Atlantic ERK-3525-AV ERK Series AV Floor Standing Rack, 25" Depth, 35U RMS

Category: Middle Atlantic by Legrand, Residential AV, Data Comm & Networking, Pro AV, Residential Furniture & Racks, Racks & Enclosures, Commercial Furniture & Racks, Rack Cabinets & Frames, Rack Cabinets & Frames, Rack Cabinets & Frames

UPC Code: 656747095146

Country of Origin: United States. Country of origin is subject to change.

Specifications

: ADI Part Number NO-ERK3525AV Brand Name Middle Atlantic by Legrand Manufacturer Legrand Group Manufacturer Part Number ERK3525AV Product Line Sectional Product Model ERK-3525-AV Product Name ERK-series Audio/Video Enclosure Rack Cabinet Product Series ERK Product Type Rack Cabinet

: Application/Usage A/V Equipment Material Steel

: TAA Compliant No

: Color Black Depth 25 Height 65.38 Maximum Weight Capacity 2500 lb Rack Height 35U Rack Width 19" Weight 152lb Width 22

: Finishing Black Wrinkle Powder Coated Mount Type Freestanding

: Limited Warranty Lifetime

: Assembly Required No Certifications ASCE Country of Origin US Environmental Certification GREENGUARD, RoHS Environmentally Friendly Yes Features Cable Management, Front Door, Key Lock, Rear Door, Vented Bottom, Vented Top Package Contents
ERK-series Audio/Video Enclosure Rack Cabinet
6 x Horizontal Lacer Bars
12 x 8" Hook and Loop Cable Management Straps
Thin Power Strip(s) 20 Amps
Leveling Feet
and more below
, 100 x 10-32 Mounting Hardware, 3-1/4" Wide Vertical Lacer Strip, Configurable Rear Door with Bottom Vent, Solid Locking Front Door, Integrated Fan Top, Welded Side Panels With Vent Blockers to Control Airflow
