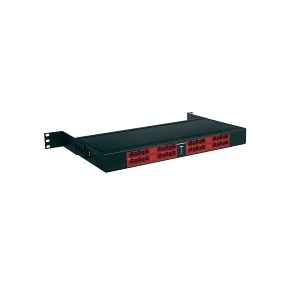

Middle Atlantic PD-DC-300-24V 300W Maximum Power DC Power Distribution with 24V Outputs, 24 Outlet
PD-DC-300-24V
|NO-PDDC30024
Shop All Middle Atlantic by Legrand
Middle Atlantic PD-DC-300-24V 300W Maximum Power DC Power Distribution with 24V Outputs, 24 Outlet
PD-DC-300-24V | NO-PDDC30024
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Clean up your rack by replacing messy, space-consuming wall warts and power strips with the Select Series DC Power Distribution, designed for AV, security, and networking applications. The DC Power Distribution PDUs allow you to optimize installations that involve a multitude of devices in varying voltages. These PDUs provide high current capacity to an extensive number of outputs, maximizing the same voltage in a single unit or splitting between the most popular voltages. With flexible mounting options, you can bring DC power to a typical rack unit, small enclosure, or wall box. Plug it in, feel confident, and simply focus on creating an amazing AV experience. The PD-DC-300-24V offers 24V outputs with a maximum of 12.5A, providing a total of 300W. It features an industry-leading number of outputs, allowing you to power as many as 24 devices. Protect your equipment with basic surge protection and overload protection on the AC input, and enjoy individual redundancy with auto-resetting PTC overload protection on each output. The reversible, adjustable mounting ears support various mounting methods, including mounting the unit to the back or side of the rack. Color-coded screw terminal connectors with industry-standard voltages and polarity labeling make identification easy: 5 volts (orange), 12 volts (yellow), 24 volts (red), and 18 volts (blue). LED indicator lights show activity on each output and alert you to maximum capacity on each voltage bank. The ability to trim your power cords to a suitable length enhances aesthetics and increases airflow. Additionally, the ultra-quiet, thermostatic temperature-controlled fan with automatic speed adjustment keeps your PDU from overheating. The unit comes with a 6ft IEC power cord for added convenience.
Specifications
ADI Part Number NO-PDDC30024 Brand Name Middle Atlantic by Legrand Manufacturer Legrand Group Manufacturer Part Number PD-DC-300-24V Product Model PD-DC-300-24V Product Name PD-DC-300-24V 24-Outlets PDU Product Series PD Product Type PDU Sector Residential AV
Output Voltage 24V DC PDU Type Switched Receptacle Detail 24 x Screw Terminal Receptacle Type Screw Terminal
TAA Compliant No
Depth 7.26 Form Factor Rack Height 1.75 Rack Height 1U Width 19
Input Current 12.50A Input Voltage 100-240V AC Plug/Connector Type NEMA 5-15P Voltage Rating 24V DC
Mount Type Rack Mount Protection Type Overload Protection, Surge Protection
Amperage 10A
Limited Warranty 3-Year
Certifications UL Listed Country of Origin CN Environmentally Friendly Yes Package Contents - PD-DC-300-24V 24-Outlets PDU
- Flexible Mounting Hardware
- Color-coded Screw Terminal Connectors to Connect Devices
- 1 x 6ft IEC Power Cord
