Middle Atlantic PDX-215C-SP NEXSYS 2-Outlet Compact PDU, Series Surge Protection, 15A
PDX-215C-SP
|NO-PDX215CSP
Shop All Middle Atlantic by Legrand
Middle Atlantic PDX-215C-SP NEXSYS 2-Outlet Compact PDU, Series Surge Protection, 15A
PDX-215C-SP | NO-PDX215CSP
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

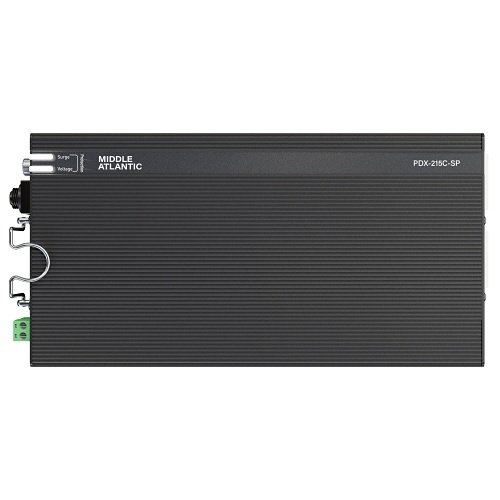

The Middle Atlantic PDX-215C-SP is a compact NEXSYS PDU designed for 'behind-the-display' applications, particularly digital signage. It features (2) NEMA 5-15R outlets and operates at 15A. The PDU offers flexible mounting options with both clamp and L-brackets, which can be easily attached to a Lever Lock plate for tool-free installation inside a rack, kiosk, or in-wall box. It. Includes Series stage MOV surge protection with 3 stages and visual indicators of surge status on the front and side. The selectable on/off voltage protection from the dry contact port helps safeguard sensitive equipment from over/under voltage scenarios by automatically turning off the outlets during such events and restoring them once the power is within the acceptable range. The PDU also supports cleaner cable management with a standard 2ft power cord and allows for the use of both outlets without obstruction, thanks to the orientation designed for easier plugging of DC transformers (wall warts).
Specifications
ADI Part Number NO-PDX215CSP Brand Name Middle Atlantic by Legrand Manufacturer Legrand Group Manufacturer Part Number PDX-215C-SP Product Line NEXSYS Product Model PDX-215C-SP Product Name NEXSYS Compact Power Series Surge Protection - PDX-215C-SP Product Series PDX Product Type PDU Sector Residential AV
Output Voltage 120V AC PDU Type Switched Receptacle Detail 2 x NEMA 5-15R Receptacle Type NEMA 5-15R
TAA Compliant No
Depth 9 Form Factor Rack Height 1.7350000000000001 Rack Height 0U Width 4.6500000000000004
Input Current 15A Input Voltage 120V AC Plug/Connector Type NEMA 5-15P
Mount Type Rack Mount, Wall Mount Protection Type Surge Protection
Amperage 15A
Limited Warranty 12-Year
Certifications UL Listed Country of Origin MY Features NEXSYS PDU Package Contents - NEXSYS Compact Power Series Surge Protection - PDX-215C-SP
- Clamp
- L-brackets
- Standard 2' Cord
