Middle Atlantic PDX-220C NEXSYS Series Compact 2-Outlet PDU, 20A
PDX-220C|NO-PDX220C
Middle Atlantic PDX-220C NEXSYS Series Compact 2-Outlet PDU, 20A
PDX-220C|NO-PDX220C
Key Features
- 20A with 2 NEMA 5-20R Outlets
- The compact design of this NEXSYS PDU is perfect for"behind-the-display" applications, especially digital signage
- The NEXSYS Compact PDU includes 2 mounting options for mounting flexibility, a clA and L-brackets
Key Features
- 20A with 2 NEMA 5-20R Outlets
- The compact design of this NEXSYS PDU is perfect for"behind-the-display" applications, especially digital signage
- The NEXSYS Compact PDU includes 2 mounting options for mounting flexibility, a clA and L-brackets
Key Features
- 20A with 2 NEMA 5-20R Outlets
- The compact design of this NEXSYS PDU is perfect for"behind-the-display" applications, especially digital signage
- The NEXSYS Compact PDU includes 2 mounting options for mounting flexibility, a clA and L-brackets

Middle Atlantic by Legrand
Middle Atlantic PDX-220C NEXSYS Series Compact 2-Outlet PDU, 20A
PDX-220C | NO-PDX220C
Please sign in to view pricing and availability and to add to cart.
Accessories
HDMI Extenders
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
The Middle Atlantic PDX-220C is a compact NEXSYS PDU designed for 'behind-the-display' applications, particularly digital signage. It features (2) NEMA 5-20R outlets and operates at 20A. The PDU offers flexible mounting options with both clamp and L-brackets, which can be easily attached to a Lever Lock plate for tool-free installation inside a rack, kiosk, or in-wall box. It includes multi-stage MOV surge protection with 3 stages and visual indicators of surge status on the front and side. The selectable on/off voltage protection from the dry contact port helps safeguard sensitive equipment from over/under voltage scenarios by automatically turning off the outlets during such events and restoring them once the power is within the acceptable range. The PDU also supports cleaner cable management with a standard 2ft power cord and allows for the use of both outlets without obstruction, thanks to the orientation designed for easier plugging of DC transformers (wall warts).
Main Features
- 20A with 2 NEMA 5-20R Outlets
- The compact design of this NEXSYS PDU is perfect for"behind-the-display" applications, especially digital signage

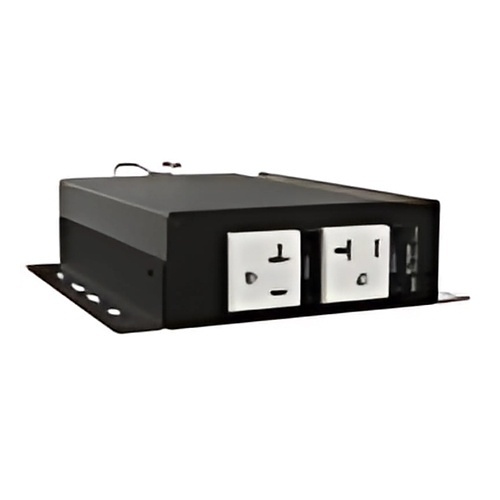

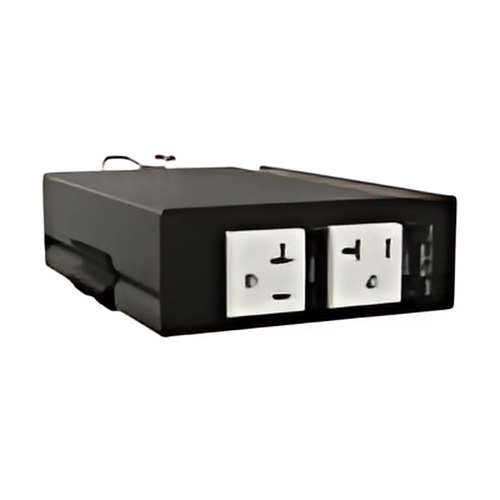

- The NEXSYS Compact PDU includes 2 mounting options for mounting flexibility, a clA and L-brackets

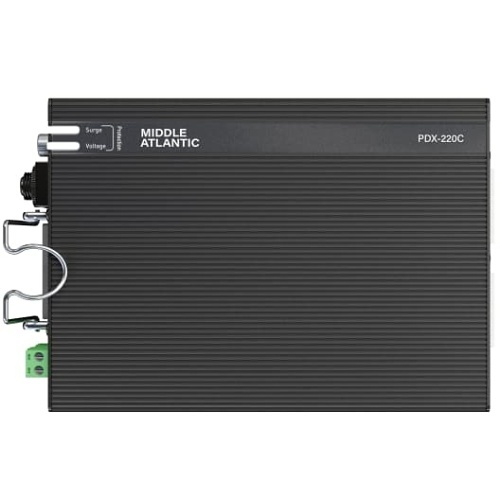

- Multi-stage MOV surge protection; 3 stages of surge protection and Visual Indicators of surge status on the front and side of the PDU
- The selectable on / off voltage protection from the dry contact port, gives the option to protect sensitive equipment from over / under voltage scenarios

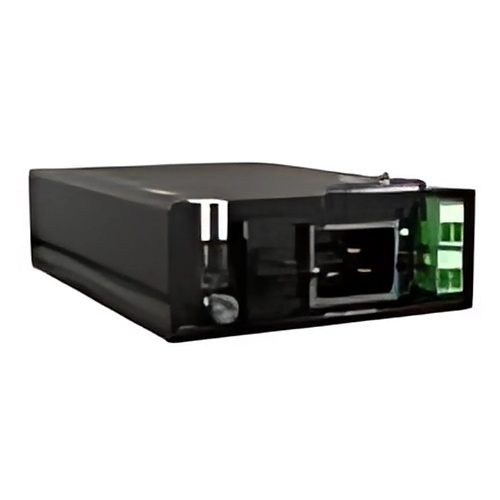

- IEC Inlet allows for cleaner cable management by selecting your desired length of power cord. A standard 2' cord is included with all models
- The outlets are oriented for easier plugging of DC transformers (wall warts) eliminating blocked outlets
General Information
Name: Middle Atlantic PDX-220C NEXSYS Series Compact 2-Outlet PDU, 20A
Category: Middle Atlantic by Legrand, Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code: 656747396397
Country of Origin: Malaysia. Country of origin is subject to change.
Specifications
-
ADI Part Number NO-PDX220C Brand Name Middle Atlantic by Legrand Manufacturer Legrand Group Manufacturer Part Number PDX-220C Product Line NEXSYS Product Model PDX-220C Product Name NEXUS PDX-220C 2-Outlets PDU Product Series PDX Product Type PDU Sector Residential AV
-
Output Voltage 120V AC PDU Type Switched Receptacle Detail 2 x NEMA 5-20R Receptacle Type NEMA 5-20R
-
TAA Compliant No
-
Form Factor Rack
-
Input Current 20A Input Voltage 120V AC
-
Mount Type Rack Mount, Wall Mount Protection Type Surge Protection
-
Country of Origin MY Features Compact
