Middle Atlantic RLNK-P415 PDU RackLink Series Compact Premium Plus PDU With Racklink, 4-Outlet, 15A and 2-Stage Surge, Black

Brand: Middle Atlantic by Legrand
ADI #:NO-RLNKP415 Model #: RLNK-P415  Name: Middle Atlantic RLNK-P415 PDU RackLink Series Compact Premium Plus PDU With Racklink, 4-Outlet, 15A and 2-Stage Surge, Black
  • PDU improves efficiency, uptime and growth of data centers
  • Remotely monitor single-or-three phase voltage, frequency even load levels with monitored PDUs
  • NEMA 5-15R receptacle type to ensure maximum usability and reliable power output

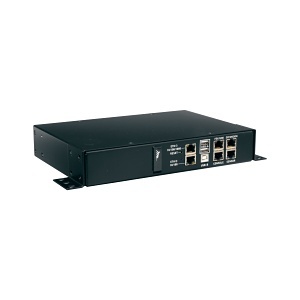

Image of NO-RLNKP415

Product Overview

Monitor Your Digital Signage Installations. Middle Atlantic's compact Premium+ PDU with RackLink™ is a best-in-class solution for digital signage installations. Premium+ protects system from power anomalies that can damage sensitive displays or dvLED tiles and offers robust remote monitoring/logging capabilities via IP connectivity to ensure ultimate up-time. This means that you and your customers can feel confident that all eyes are seeing the messaging as expected.

  • Slim form factor is easily concealed behind displays and dvLED tile walls
  • Includes mounting bracket for on-wall installation
  • 4 Outlets
  • 15 Amps
  • 2-Stage MOV Surge Protection
  • 24/7/365 connectivity with the RackLink™ Remote Management System to monitor everything plugged into the PDU
  • Simple system setup with advanced capabilities
    • Save programming with integrated scheduling, variable timed sequencing, ping sequencing, auto healing, thresholds, and multiple notification options.
    • Easily connect to control systems and IT systems with universal compatibility through custom drivers, SNMP v3/MIB, JSON-RPC, and 3rd party integrations.
    • Connect via Wi-Fi with a 3rd party dongle
    • Remotely update firmware without having to shut down the PDU, ensuring system uptime
  • Best-in-class monitoring, logging, and data reporting for remote system management with a user-friendly interface.
    • Superior metering accuracy of total power draw down to outlet level including current, voltage, power, power factor and energy usage
    • Connect multiple environmental sensors to monitor the temperature and humidity and alert potential threats that could cause system downtime
  • Industry-leading network security and support of IT protocols for demanding end users
    • SSL/TLS Certificates
    • SSH
    • HTTPS
    • Self-signed certificates
  • Built in partnership with Raritan, a leader in the intelligent power market, using their Xerus platform to deliver robust security features and intelligence
  • Compliant with AVIXA Energy Management Standard to support energy efficient AV system design, monitoring and optimization.

General Information

Name : Middle Atlantic RLNK-P415 PDU RackLink Series Compact Premium Plus PDU With Racklink, 4-Outlet, 15A and 2-Stage Surge, Black , Middle Atlantic by Legrand
Category : Power Distribution Units
UPC Code : 656747363344
Country of Origin : . Country of origin is subject to change.

Specifications

General Information

ADI Part Number : NO-RLNKP415
Brand Name : Middle Atlantic
Manufacturer : Legrand Group
Manufacturer Part Number : RLNK-P415
Product Line : Premium+
Product Model : RLNK-P415
Product Name : Premium+ RLNK-P415 4-Outlets PDU
Product Type : PDU
Weight (Approximate) (g) : 2993.71

Technical Information

Output Voltage : 120 V AC
PDU Type : Monitored
Receptacle Detail : 4 x NEMA 5-15R
Receptacle Type : NEMA 5-15R

Environmental Conditions

Environmental Sensors : Temperature/Humidity

Interfaces/Ports

Network (RJ-45) : Yes

Management

Management : <ul> <li>SNMP</li> <li>SSL/TLS/SSH</li> <li>SMTP</li> <li>NTP</li> <li>DDNS</li> <li>Cloud</li> <li>CLI TCIP/IP/USB RS-232</li> <li>HTTPS</li> <li>HTTP</li> <li>HyperTerminal</li> <li>Telnet</li> </ul>

Physical Characteristics

Depth : 7.8"
Depth (mm) : 198.628
Form Factor : Compact
Height : 1.8"
Height (mm) : 44.45
Mounting Orientation : Vertical
Product Color : Black Powder Coat
Weight (Approximate) : 6.60 lb
Width : 11.6"
Width (mm) : 294.132

Power Description

Input Current : 15 A
Input Current (A) : 15
Input Voltage : 120 V AC
Input Voltage Range : 80 V AC - 140 V AC
Plug/Connector Type : NEMA 5-15P

Product Information

Mount Type : Rack-mountable, Wall-mountable
Protection Type : Surge Protection

Warranty

Limited Warranty : 3 Year

Miscellaneous

Environmental Certification : ISO 14001
Environmentally Friendly : Yes
Package Contents : <ul> <li>Premium+ RLNK-P415 4-Outlets PDU</li> <li>Mounting Bracket</li> <li>power cord</li> </ul>
