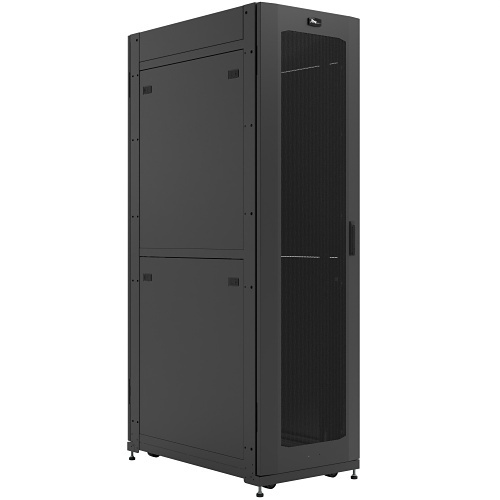

Middle Atlantic SNE24H-4542-A2 SNE Series Wide Security Network Enclosure, 24"
Middle Atlantic SNE24H-4542-A2 SNE Series Wide Security Network Enclosure, 24"
Middle Atlantic SNE24H-4542-A2 SNE Series Wide Security Network Enclosure, 24"
SNE24H-4542-A2Â |Â NO-SNE24H5A2
Please sign in to view pricing and availability and to add to cart.
Product Overview
The SNE Series Hybrid is configured for hybrid security systems consisting of a mix of analog and digital equipment and cabling. Accommodates small devices including encoders, power supplies and access control systems on the patented Zero-U Tool-Free Lever Lockâ„¢ system. Fully configured Security Network Enclosure w/active ventilation for equipment rooms o 70% open area vented front door o Pair of split flush mount locking side panels o (2) vertical 10" wide Lever Lockâ„¢ accessory mounting plate o (1) 6" wide vertical wire grid lace o 24" width o 42" overall depth o 45 rackspace o 2 pair of tapped 10-32 adjustable rail o 4 space cage-nut adapter (pair) SNE Series Hybrid with Rear Active Ventilation Solid split rear door with (8) 6" fans for a total of 1,760 CFM active ventilation; Solid top Optional proportional speed fan controller (FC-CFRD)
- Lever Lockâ„¢ compatible
- UTL/ETL listed and seismic certified
- Includes 2 vertical 10" wide Lever Lock accessory mounting plates
- Configured for rear active ventilation
- Includes 1,760 CFM split fan rear door (eight 6" fans, expandable)
- Optional proportional door fan controller (FC-CFRD, not included)
- Includes 70% open front door and solid top
- Includes one piece of 6" wide vertical wire grid lace
- Includes pair of split flush mount locking side panels
- Includes 2 pair of adjustable 10-32 tapped rackrail
- Includes four-space cage-nut adaptor (pair)
- Includes 4 leveling feet
- Includes 4 casters
Main Features
- Rack Cabinet allows you to effectively utilize most of the space available with maximum dependability
- Comes in black powder coat color for an elegant and fashionable look
- Built with steel to offer great resistance to damage and deterioration
- Floor Standing form factor allows hassle-free and easy usage with increased efficiency
- Patch Panel application, usage for your items, valuables, equipment organizational, storage, placement convenience and ease
General Information
Specifications
-
ADI Part Number NO-SNE24H5A2 Brand Name Middle Atlantic by Legrand Manufacturer Legrand Group Manufacturer Part Number SNE24H-4542-A2 Product Model SNE24H-4542-A2 Product Name SNE Series Rack, SNE24H-4542-A2 Product Series SNE Product Type Rack Cabinet Â
-
Application/Usage LAN Switch, Patch Panel, Server Depth 43.2" Depth (mm) 1096.010 Dynamic/Rolling Weight Capacity 1600 lb Dynamic/Rolling Weight Capacity (g) 725747.792 Form Factor Floor Standing Height 84.8" Height (mm) 2153.158 Product Color Black Powder Coat Product Material Steel Rack Depth 38.48" Rack Depth (mm) 977.392 Rack Height 45U Rack Width 19" Rack Width (mm) 482.6 Static/Stationary Weight Capacity 12000 lb Static/Stationary Weight Capacity (g) 5443108.44 Width 24" Width (mm) 609.600 Â
-
Limited Warranty Lifetime Â
-
Assembly Required No Environmental Certification ECO PASSPORT, GREENGUARD Gold Environmentally Friendly Yes Â
