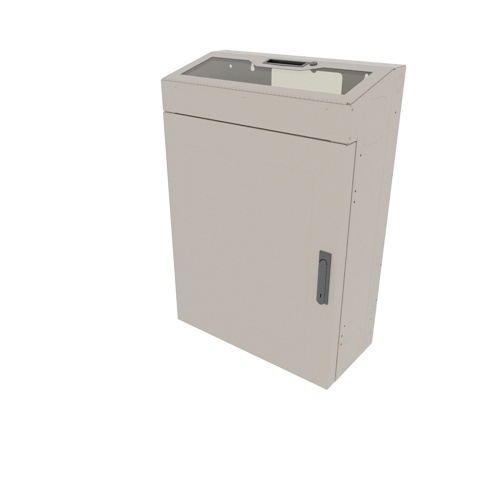

Product Overview
With a low-profile, patent-pending design, this pre-configured VWM Series Wall Cabinet is ideal for vertically mounting deeper equipment in a "knobs-up" orientation with 4 spaces and 30" usable depth. It includes everything needed for a simple solution, but also can support additional customization in Lever Lock⢠small device mounting within the cabinet and/or on the door, thermal management, cable management and power distribution for a complete system that ensures uptime and reliability on the wall.
- 4 spaces and 30" of usable depth for vertical "knobs up" equipment mounting
- Rackrail features both 10-32 thread and cage nut
- Flexible position spaces to mount the rackrail where it's needed
- Split door with hinged plexiglass top that enables end-user access to controls and visibility
- Both door and hinged top are lockable and keyed separately for security
- Laser knockouts on the top, bottom and sides for cable entry and thermal management
- Integral electrical box simplifies power distribution
- Finished in a durable putty colored powder coat
General Information
Name : Middle Atlantic VWM-PD-4-36K-PW VWM Series Low Profile Wall Rack Plexi Top, 12" Deep, 4 RU, Putty , Middle Atlantic by Legrand
Category : Rack Cabinets & Frames
UPC Code : 656747291609
Country of Origin : . Country of origin is subject to change.
Specifications
General Information
ADI Part Number : NO-VWMPD436P
Brand Name : Middle Atlantic
Manufacturer : Legrand Group
Manufacturer Part Number : VWM-PD-4-36K-PW
Product Model : VWM-PD-4-36K-PW
Product Name : 4 SP. Low Profile Wall Rack, Plexi Top, Putty
Product Series : VWM
Product Type : Rack Cabinet
Technical Information
Rack Type : Wall
Physical Characteristics
Depth : 12"
Depth (mm) : 304.8
Form Factor : Wall Mountable
Height : 36"
Height (mm) : 914.4
Maximum Weight Capacity : 150 lb
Maximum Weight Capacity (g) : 68038.856
Product Color : Putty
Product Material : Plexiglass, Steel
Rack Depth : 36"
Rack Depth (mm) : 914.4
Rack Height : 4U
Rack Width : 19"
Rack Width (mm) : 482.6
Width : 25"
Width (mm) : 635
Warranty
Limited Warranty : Lifetime
Miscellaneous
Assembly Required : No
Environmental Certification : ECO PASSPORT, GREENGUARD Gold, RoHS
Environmentally Friendly : Yes
