Product Overview

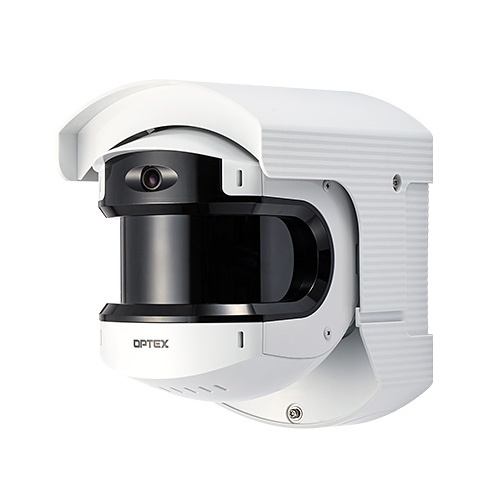

Part of the ONVIF profile S conformant REDSCAN Pro Series, RLS-50100V is the long-range LiDAR sensor providing very accurate detection of intruders and moving objects within a range of 165 ft. x 330 ft. (50 m x 100 m), without any gaps and keeping the same detection resolution in the near and far. Equipped with OPTEX's most advanced technology it provides excellent detection performance not affected by variable lighting, temperature or environmental changes, making it the best solution for high security sites.
General Information
Name : Optex RLS-50100V Redscan Pro Series Indoor Long Range Laser Scan Detecor, 165' x 330' Range , Optex
Category : Perimeter Detection Systems
UPC Code : 788924503868
Country of Origin : . Country of origin is subject to change.
Specifications
General Information
ADI Part Number : OP-RLS50100V
Brand Name : Optex
Manufacturer : Optex, Inc
Manufacturer Part Number : RLS-50100V
Product Line : REDSCAN Pro
Product Model : RLS-50100V
Product Name : REDSCAN Pro RLS-50100V Motion Sensor
Product Type : Motion Sensor
Technical Information
Maximum Motion Sensing Distance : 164.04 ft
Maximum Motion Sensing Distance (mm) : 50000
Maximum Time Delay : 2 Second
Maximum Time Delay (Second) : 2
Minimum Motion Sensing Distance : 39.37"
Minimum Motion Sensing Distance (mm) : 1000
Interfaces/Ports
Network (RJ-45) : Yes
Physical Characteristics
Application/Usage : Building, Driveway, Garage, Garden, Home, Indoor/Outdoor, Perimeter, Roof
Depth : 10.1"
Depth (mm) : 256.6
Height : 9.1"
Height (mm) : 230
Width : 6.3"
Width (mm) : 160
Power Description
Input Voltage : 19.2 V DC, 24 V DC, 28 V DC, 30 V DC
Miscellaneous
Certifications & Standards : UL Listed
