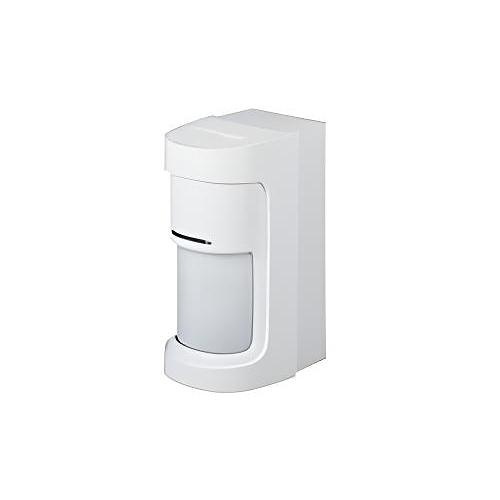

Optex WXS-RDAM 180° Panoramic Outdoor Detector, Passive Infrared and Microwave, 40'
WXS-RDAM
|OP-WXSRDAM
Shop All Optex
Optex WXS-RDAM 180° Panoramic Outdoor Detector, Passive Infrared and Microwave, 40'
WXS-RDAM | OP-WXSRDAM
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The WX Shield (WXS) Series is a family of high or mount 180° external sensors comprised of 4 PIR and 2 dual tech models, utilizing both analog and digital technologies to detect approaching intrusions. With its wide and comprehensive field of view and the ability to tailor its settings to meet the environment around your premise, the WXS Series will provide an effective solution for new and existing security systems. Wireless battery-powered PIR and Microwave dual-tech model with anti-masking.
Main Features
- 180° detection area, up to 40' per side for 80' total coverage
- Individual detection area size and sensitivity
- Individual alarm outputs, with anti-masking
- Selectable mounting height
- High mount - 2.0 m (6' 7") Low mount - 0.8 to 1.2 m (2' 7" to 4' )
- Stable against light disturbances
General Information
Name: Optex WXS-RDAM 180° Panoramic Outdoor Detector, Passive Infrared and Microwave, 40'
Category: Optex, Intrusion, Motion & Perimeter Sensors, PIR Motion Sensors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number OP-WXSRDAM Brand Name Optex Manufacturer Part Number WXS-RDAM Product Line WX Shield Product Series WX Shield Product Type Motion Sensor
Application/Usage Outdoor Connectivity Technology Wired Maximum Motion Sensing Distance 40' Passive Infrared Sensor (PIR) Yes
Operating Temperature (T-T) -4-113°F
Form Factor Pole Mount, Wall Mount
Input Voltage 3-9V DC Power Source Battery
Mount Type Pole Mount, Wall Mount
Features Anti-Masking, Dual Tech, Pet-Tolerance Indoor/Outdoor Outdoor
