Ortronics by Legrand

Ortronics LM4-LC24J Cassette M4 24 MPO (Male) to LC Quad OS2 Commercial Unpainted

LM4-LC24J

OR-LM4LC24J

Compare

Sign In for Dealer Pricing

New to ADI?Become a Customer

Data Sheet

Shop All Ortronics by Legrand

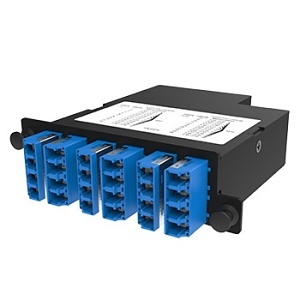

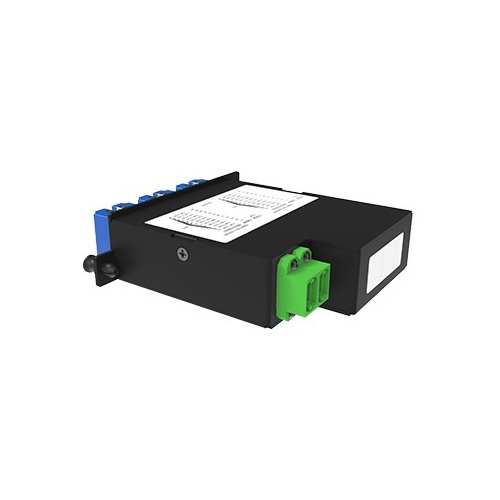

Ortronics LM4-LC24J Cassette M4 24 MPO (Male) to LC Quad OS2 Commercial Unpainted

LM4-LC24J | OR-LM4LC24J

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

Infinium M4 Cassettes are part of a complete fiber solution. When combined with matched Infinium Trunks and Infinium Patch Cable Assemblies the solution can enable industry leading pre-terminated performance and universal polarity for simple, fast and consistent and simplified installation. Compatible with Infinium HD-E Rack Mount Fiber Enclosure with M4 Drawer Face.

Main Features

High Density; 12 or 24-Fiber cassette compatible with Infinium HD M4 Enclosures
Versatile Installation; Infinium Modular Panel enables mixed media installations
Fiber Type; Supports either Single-mode OS2 or Multimode Infinium Ultra fiber
Universal polarization
LC adapter with internal shutter; Ensures eye safety by blocking laser light when the connector is removed. Automatic shutter requires no manual handling. Compatible with LC connectors, keeps the interior clean, and allows visible light to pass through
Ultra Low Loss System with Infinium Ultra Trunks and Patch Cords. Single-mode channel loss, 1.2 dB. Return loss, 49 dB. Multimode channel loss, 1.0 dB. Return loss, 19 dB
Low Loss System with Infinium Core Trunks and Patch Cords. Single-mode channel loss, 2.1 dB, return loss, 49 dB. Multimode channel loss, 2.5 dB. Return loss, 19 dB

General Information

Name: Ortronics LM4-LC24J Cassette M4 24 MPO (Male) to LC Quad OS2 Commercial Unpainted

Category: Ortronics by Legrand, Data Comm & Networking, Patch Panels, Fiber Optic Cassettes

UPC Code:

Country of Origin: United States. Country of origin is subject to change.

Specifications

: ADI Part Number OR-LM4LC24J Brand Name Ortronics by Legrand Manufacturer Part Number LM4-LC24J Product Line Ortronics Product Name Infinium Core M4 Cassette - 12 Fiber - LC Duplex to MPOM - OS2 - Universal Polarity Product Type Fiber Cassettes

: Country of Origin US

Documents and Resources

Download All Documents

Product Data Sheet

Manufacturer Brochure

Additional Resources
