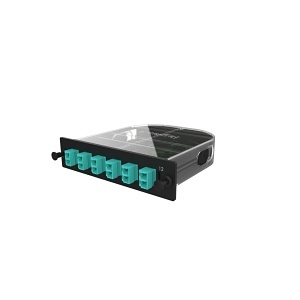

Ortronics M2LCD12-50E1A1R Q-Series Splice Cassette 12 Ribbon Fiber, LC Duplex, OM4, Core Performance
M2LCD12-50E1A1R
|OR-M2LCD121R
Shop All Ortronics by Legrand
Ortronics M2LCD12-50E1A1R Q-Series Splice Cassette 12 Ribbon Fiber, LC Duplex, OM4, Core Performance
M2LCD12-50E1A1R | OR-M2LCD121R
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Q-Series Splice Cassettes are available in the M2 footprint. These cassettes have been engineered with innovated features to simplify install, speed-up field termination, provide cable management within the housing and ensure high performance. The Splice Cassettes are designed for use with Single-Mode (OS2) or Multimode (OM4) Fiber, Housing 12-24 fibers, and are available in LC Duplex or LC Quad port configurations. Fusion splicing of individual fibers and ribbon fibers is available in both 12 fiber and 24 fiber splice cassettes. Heat shrinks, pigtail slack and cable slack are managed within the cassette—eliminating the need for individual splice trays or housings. The design of the cassettes allows easy mounting from either the front or the rear of an enclosure or panel, and individual fibers within the cassette may be accessed without disturbing the other fibers in the housing.
Specifications
ADI Part Number OR-M2LCD121R Brand Name Ortronics by Legrand Manufacturer Part Number M2LCD12-50E1A1R Product Series Q
Color Blue Depth 5.42" Height 1.19" Width 5.13"
Limited Warranty 5-Year
Country of Origin CN
