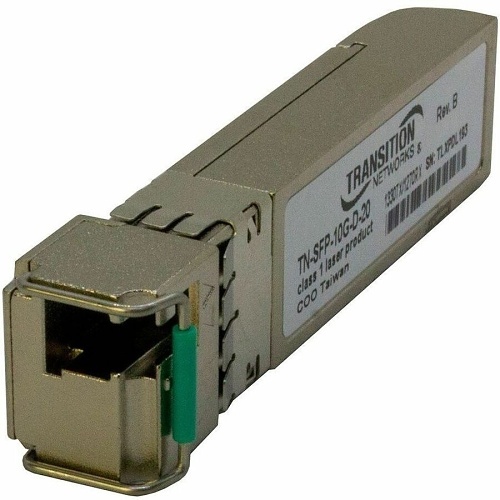

Lantronix TN-SFP-10G-D-20 SFP+ Module Transceiver with DMI, Cisco Compatible, 10GBASE-LR, 10.3G, Single Fiber Singlemode
TN-SFP-10G-D-20
|P6-SFP10GD20
Shop All Lantronix
Lantronix TN-SFP-10G-D-20 SFP+ Module Transceiver with DMI, Cisco Compatible, 10GBASE-LR, 10.3G, Single Fiber Singlemode
TN-SFP-10G-D-20 | P6-SFP10GD20
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
10G Base-BX, SFP+ with DMI 1330nm TX/1270nm RX single fiber single mode (LC) [20 km/12.4 mi.] Link Budget- 12.1 dB.
Main Features
- SFP+ Optical Transceiver with LC connector
- 10G Small Form-Factor Pluggable (SFP+) MSA Compliant
- Compliant with 10GBase-BX
- SFF-8472 Digital Diagnostic Function (DMI)
- Maximum Link Length of 80 km
- Single +3.3V Power Supply
- RoHS Compliant
General Information
Name: Lantronix TN-SFP-10G-D-20 SFP+ Module Transceiver with DMI, Cisco Compatible, 10GBASE-LR, 10.3G, Single Fiber Singlemode
Category: Lantronix, Data Comm & Networking, Network Adapters, SFP Modules
UPC Code: 648177038374
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-SFP10GD20 Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number TNSFP10GD20 Maximum Distance 65616.80' Product Model TN-SFP-10G-D-20 Product Name TN-SFP-10G-x-xx Cisco SFP+ Module Product Series TN-SFP-10G-x-xx Product Type SFP+
Fiber Optic Mode Single-mode Media Type Supported Optical Fiber
TAA Compliant Yes
Number of Ports 1
Network Technology 10GBase-BX
Ethernet Technology 10 Gigabit Ethernet
Depth 2.2" Form Factor Plug-in Module Height 0.3" Width 0.5"
Input Voltage 3.3V Plug/Connector Type LC
Limited Warranty Lifetime
Compatibility MSA Compliant Country of Origin TW Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes
